Description

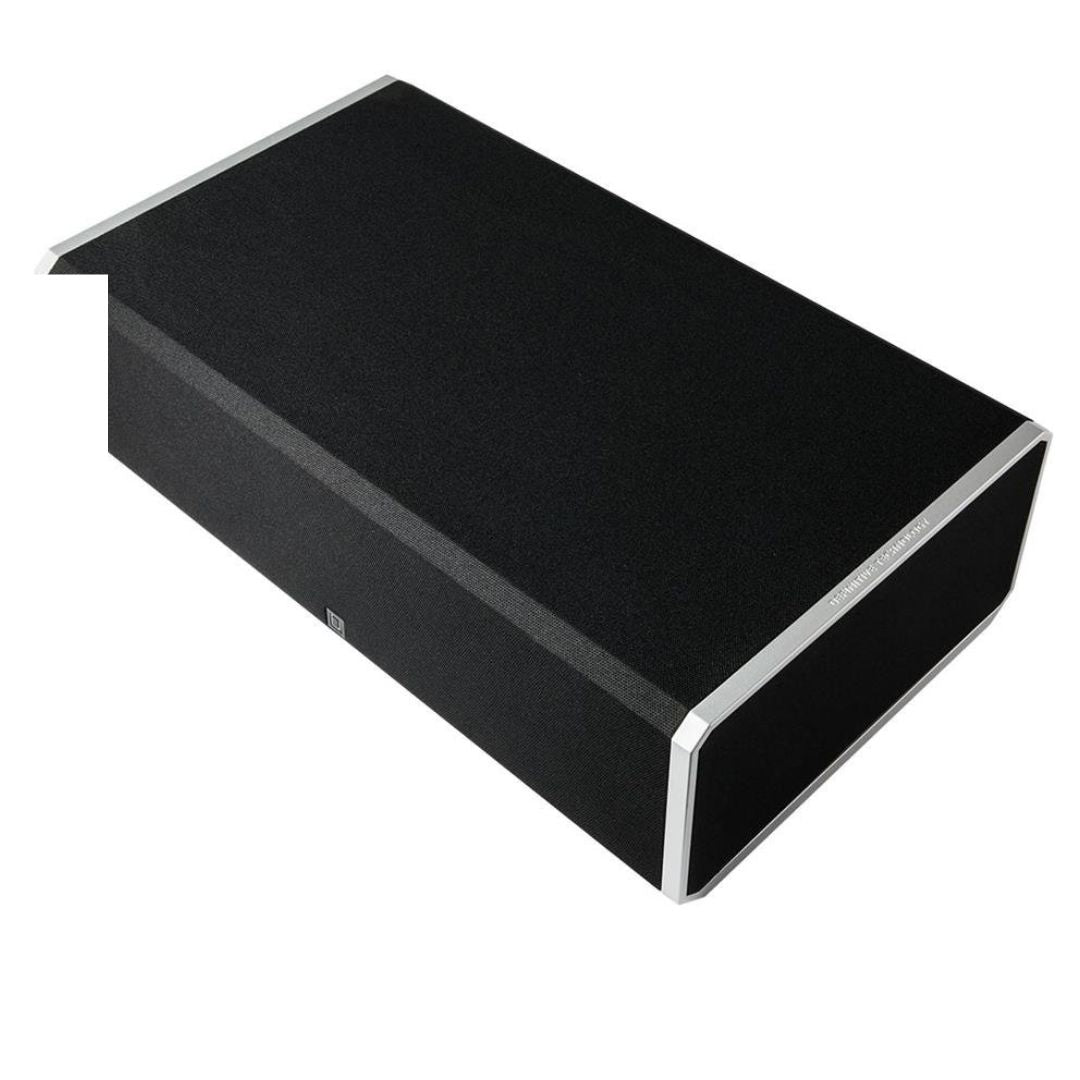

Definitive Technology CS9080 Overview
The Definitive Technology CS9080 High Performance Center Channel Speaker is a high-performance center channel speaker with a built-in powered subwoofer. This speaker has a 5-way binding post system and uses single or dual banana plugs to connect to an AV receiver. The built-in amplifier automatically turns on when it receives an active signal from the AV receiver. Once the speakers are switched off, they go into standby mode.
This speaker has a massive bass response and detailed driver performance. Its cabinet is also resonance-free, allowing it to reproduce deep bass while maintaining a balance between highs and lows. The CS9080 also has a sleek, minimalist design and a bass radiator for deeper bass.
Definitive Technology CS9080 Features
The Definitive Technology CS9080 High Performance Center Channel Speaker delivers excellent clarity in the vocal range. Its two 5-1/4'' midrange drivers and 1" annealed Pure Aluminum dome tweeter are designed to deliver superior sound quality. The aluminum dome tweeter is heat-treated to relax its crystal structure, and is attached to a silk surround to produce crisp highs. Moreover, the CS9080 features a Balanced Double Surround System (BDSS), which places the surround on both the inner and outer edge of the cone of the speaker.
The Definitive Technology CS9080 High Performance Center Channel Speaker is equipped with an 8-inch subwoofer, an eight-inch powered woofer, and a passive bass radiator. These speakers can accept 50-300 watts of power from an amplifier and deliver clear, deep bass.
Definitive Technology CS 9080 Specifications
| Total Pieces | 1 |
| Availability | US |
| Orientation | Horizontal |
| Height | 7" (17.78 cm) |
| Width | 23.11" (58.7 cm) |
| Depth | 14.25" (36.2 cm) |
| Weight | 36 lbs (16.33 kg) |
| Materials | Aluminum |
| Enclosure Type | Acoustically Tuned Vent |
| Front Array Driver Complement | • (1) 1" (2.54 cm) d (Round) Aluminum Dome - Tweeter • (2) 5.25" (13.34 cm) d (Round) - Midrange • (1) 8" (20.32 cm) d (Round) - Subwoofer • (1) 10" (25.4 cm) d (Round) - Bass Radiator |
| Total Frequency Response | 24 Hz → 40,000 Hz |
| Nominal Impedance | 8 ohms |
| Max Sensitivity (1 watt @ 1 meter) | 91 dB |
| Amplifier Class | Class D |
| Audio Inputs | • LFE (optional) |
| Speaker Inputs | (1) Pair of 5-Way Binding Posts - Gold Plated |
