Description
Marantz SR7015 Overview

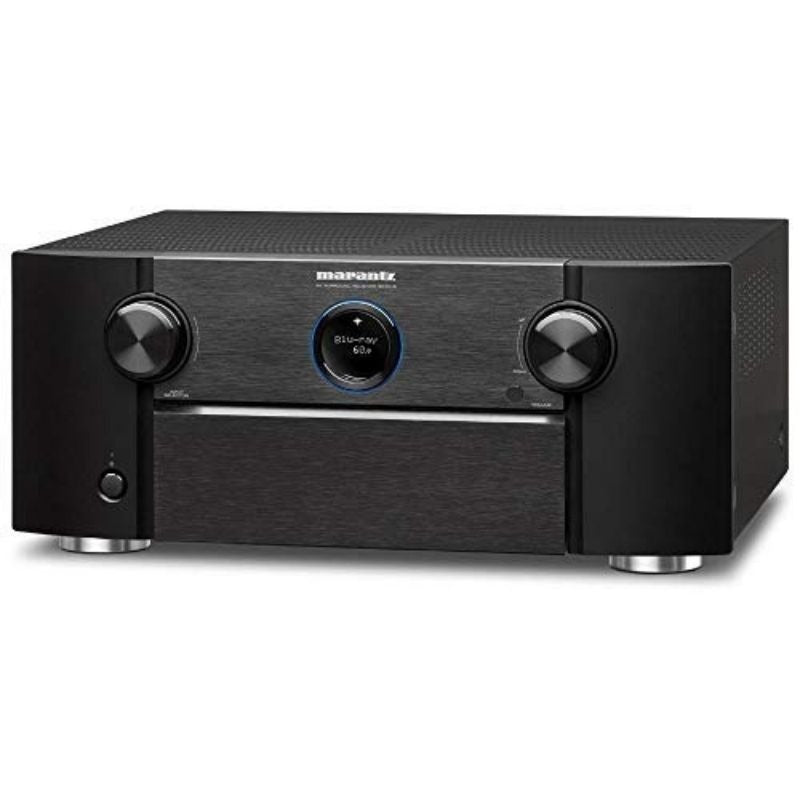

The Marantz SR7015 9.2 Channel 8K UHD AV Receiver is a great choice for home theater enthusiasts. It produces an airy, dynamic soundstage and offers IMAX Enhanced and Auro-3D support for an immersive theater experience. This AV receiver also delivers powerful musical audio playback. Its porthole-style display embodies the luxury of Marantz and has features such as streaming music from leading services and HEOS Built-in.
This AV receiver is easy to operate and features clear labels to help you get started with the receiver. It's also very easy to connect to your display and will guide you through the process step-by-step. Once connected, you'll be able to access its Smart Menu, which provides access to the source selection, surround mode, and AVR settings menu. This AV receiver supports HDMI 2.0a and HDMI 3.0a, which means it is compatible with high-speed data transmission.
Marantz SR7015 Features
The Marantz SR7015 9.2 Channel 8K UHD AV Receiver includes the HEOS XT32 smart speaker, which is a high-resolution audio system with voice controls. The new HEOS XT32 speaker system offers voice control, Bluetooth streaming, and more.
The Marantz SR7015 9.2 Channel 8K UHD AV Receiver features a comprehensive setup assistant that guides you through the process. It even checks your speaker polarity and subwoofer volume. It also runs the Audyssey MultEQ XT32 room equalizer process, which generates precision digital filters to ensure your audio system is delivering the right frequency to the right speakers.
Marantz SR7015 Specification
| DTS HD Master / DTS:X / DTS:X Pro | Yes / Yes / No |
| DTS Neo:X / DTS Neural:X | No / Yes |
| DTS Virtual:X | Yes |
| IMAX Enhanced | Yes |
| Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization | Yes / Yes / Yes |
| Dolby ProLogic Ilz / Dolby Surround | No / Yes |
| Auro 3D | Yes |
| Audyssey DSX | No |
| Multichannel Stereo | Yes |
| Max Number of Processing (Preamp) Channels | 11.2 |
Sound Enhancements
| Discrete Power Amplifier | Yes |
| Copper Plated Chassis | No |
| Power Transformer: Toroidal / EI | EI |
| Current Feedback Topology | Yes |
| Hyper Dynamic Amplifier Modules (HDAM) | Yes |
| Pure Direct | Yes |
| Gold plated RCA terminals | Yes |
| Clock Jitter Reducer | Yes |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | Yes |
| Audyssey APP Support | Yes |
| Compressed Audio Enhancer: MDAX2 | Yes |
Network
| HEOS Multi-room and Streaming | Yes |
| Bluetooth Re-transmit for Bluetooth headphones | Yes |
| Alexa / Google Voice Assistant / Apple HomePod | Yes / Yes / Yes |
| Network Audio Sharing | Yes |
| Lossy Formats: MP3 / WMA / AAC | Yes / Yes / Yes |
| Lossless formats FLAC / ALAC / WAV | Yes / Yes / Yes |
| Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 | Yes / Yes / Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| FLAC HD 192/24 | Yes |
| WAV 192/24 | Yes |
| ALAC 192/24 | Yes |
| Gapless Playback | Yes (FLAC, WAV ,ALAC ,DSD) |
| AirPlay Audio Streaming | Yes (AirPlay2) |
| Internet radio | Yes (TuneIn) |
| Spotify* | Yes (connect) |
| Pandora | Yes |
| SiriusXM | Yes |
| Compatible with Remote APP for Smart Phones | Marantz 2016 AVR Remote |
| Compatible with Remote APP for Tablets | Android / iOS / Amazon Kindle |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
HDMI
| HDMI Inputs: Back / Front | 7 / 1 |
| HDCP2.3 support | Yes |
| HDMI Outputs: Main / Zone | 2 / 1 |
| Video Conversion Analog -> HDMI | Yes |
| Analog to HDMI Scaling | 480i/576i up to 8K 60/50 |
| HDMI to HDMI Scaling | up to 8K 60/50 |
| GUI Overlay on HDMI | Yes |
| HDMI 2.1: 8K/60Hz / 4K/120Hz | Yes / Yes |
| HDMI 2.0: 3D / 4K / CEC / ARC | Yes / Yes / Yes / Yes / No |
| Enhanced ARC | Yes |
| HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR | Yes / Yes / Yes / Yes / Yes (update) |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
| Variable Refresh Rate / Quick Flame Transport / Quick Media Switching | Yes (update) / Yes (update) / Yes (update) |
| 3D Signal Pass-Through | Yes |
| 8K signal pass-through / scaling / GUI overlay | Yes / Yes / Yes |
| 4K Signal Pass-Through / Scaling / GUI Overlay | Yes / Yes / Yes |
| HDMI Pass-Through in Standby Mode | Yes |
| Picture Adjust / Noise Reduction | Yes / Yes |
| CEC | Yes |
| DSD Audio Capability | Yes |
| Audio Return Channel | Yes |
| Auto LipSync | Yes |
Multi-Room / CI
| HEOS Multi-Room Integrated | Yes |
| HEOS Link Compatibility: IR/ IP | Yes / Yes |
| Multi-Room Zones | 3 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | Yes (2ch) / Yes (2ch) / Yes / Yes |
| Zone Audio Output: Speaker / Preout | Yes / Yes |
| Zone HDMI Output from HDMI Source | Yes |
| IP Control / RS232 Control / Web Control / App Control | Yes / Yes /Yes / Yes |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Output | 2 |
| HDMI Diagnostics | Yes |
Others
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT32 |
| FL Display | 2 lines + port hole |
| Graphic User Interface - GUI | Advanced |
| ISF Certification | Yes |
| GUI Languages | 3 |
| Setup Assistant | Yes |
| Smart Select | Yes |
| Firmware Update by Network / USB | Yes / Yes |
| Variable Cross Over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| ECO Mode | Yes |
| Auto Power off | Yes |
| Sleep / Timer | Yes |

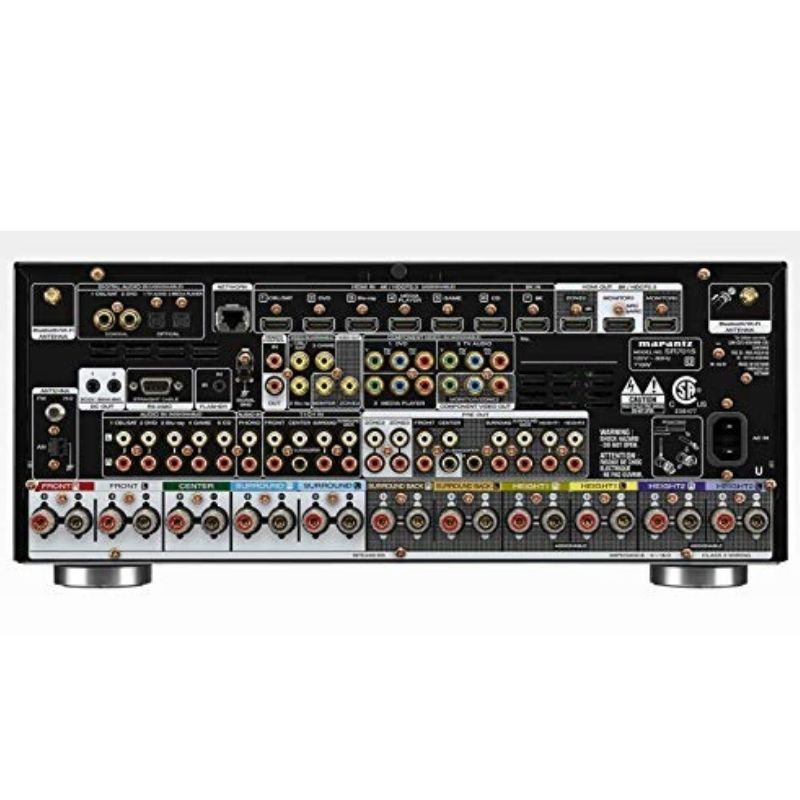

Inputs/Outputs
| Composite In / Out | 3+1 / 2 |
| Component In / Out | 3 / 1 |
| HDMI In / Out | 7+1 / 3 |
| Multi-Room Video Out: Video / HDMI | Yes / Yes |
| Analog In / Out | 5+1 / No |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 2 / 2 |
| Multi-Room Out: Analog / Digital | 2 / No |
| Multichannel Pre Out | Yes (11.2) |
| Subwoofer Out | 2 (independant) |
| 7.1 Multichannel Input | Yes |
| Speaker Terminal: Gold Plated Screw / Regular Screw | Yes / No |
| Number of Speaker Terminals | 11 |
| Speaker A / B | assignable |
| Bi-Amp Drive | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | Yes / Yes / No / Yes / Yes |
| USB Audio / Made for iPod / Made for iPhone | Yes / No / No |
| AM/FM Tuner | Yes |
Specifications
| Number of poweramps | 9 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | 125 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 165 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 235 W |
| 70% Guarantee | Yes |
General
| Metal Front Panel | Yes |
| System Remote Control | RC043SR |
| Pre-Programmed / Learnable / LCD Display | Yes / No / No |
| Power Consumption in W | 710 |
| Power Consumption No-Sound (ECO on/off) in W | 65 W / 110 W |
| Standby Consumption in W | 0.2 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | 3.5 |
| Network Control On Consumption in W | (TBD) |
| Maximum Dimensions Antenna:Horizontal:(W x D x H) in inches Antenna:Vertical :(W x D x H) in inches W/o Antenna:(W x D x H) in inches |
17.3 x 16.2 x 7.3 (17.3 x 16.2 x 9.7) 【 17.3 x 15.8 x 7.3 】 |
| Weight in lbs. | 31.3(TBD) |
