Description
Pioneer VSX-534 Overview

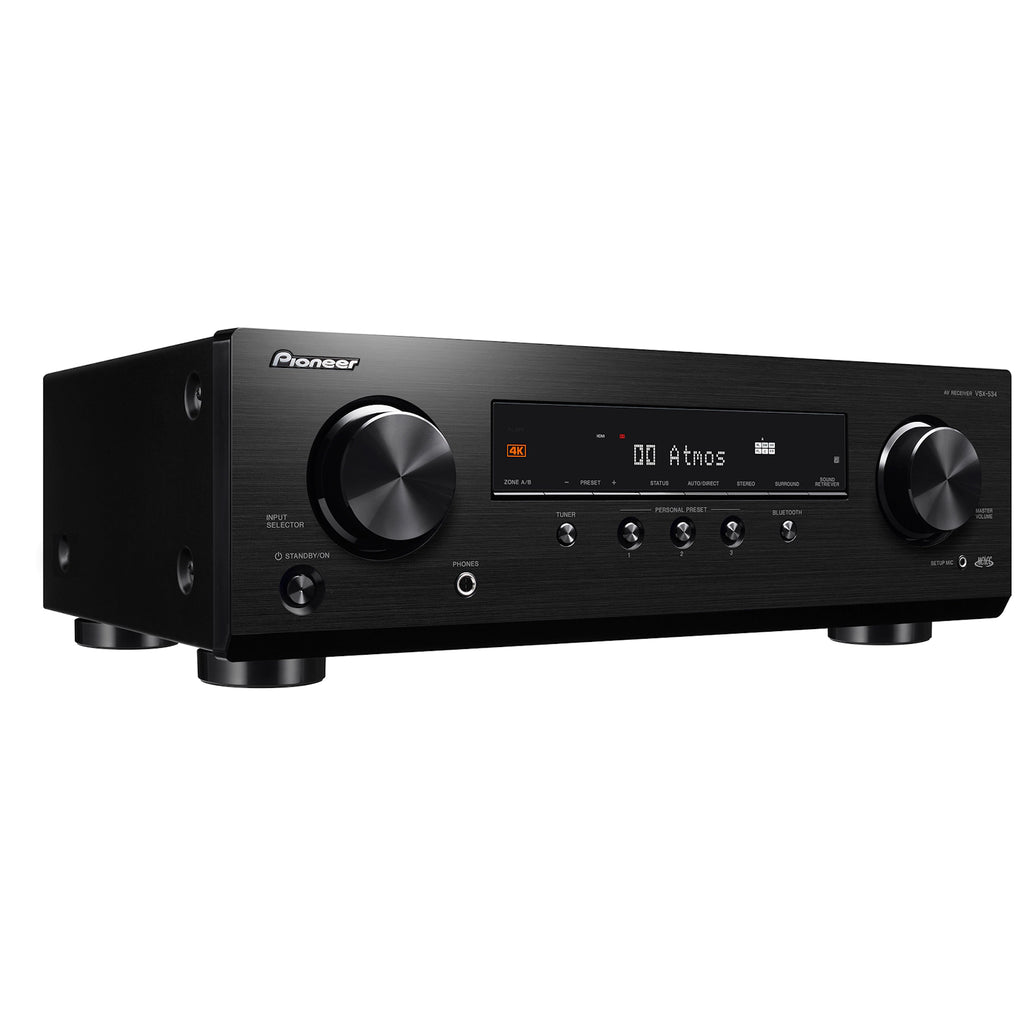

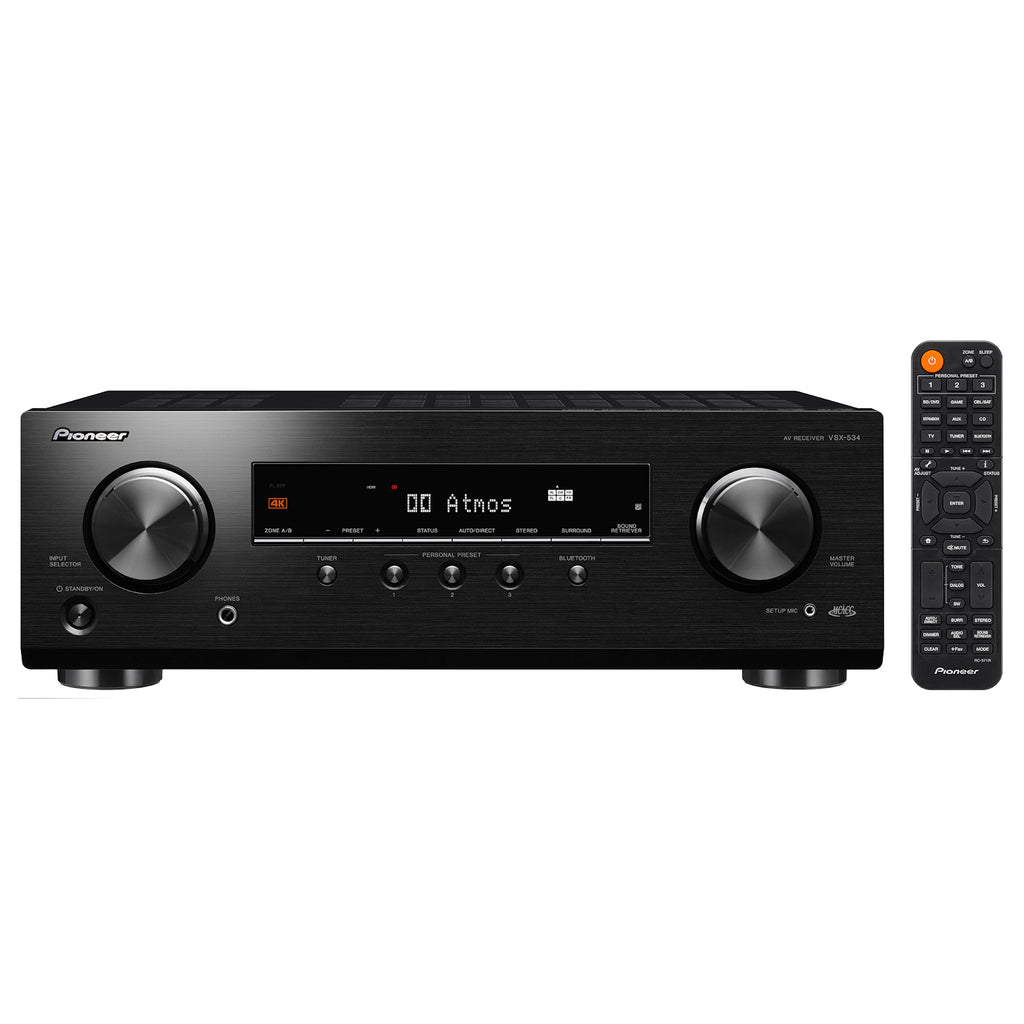

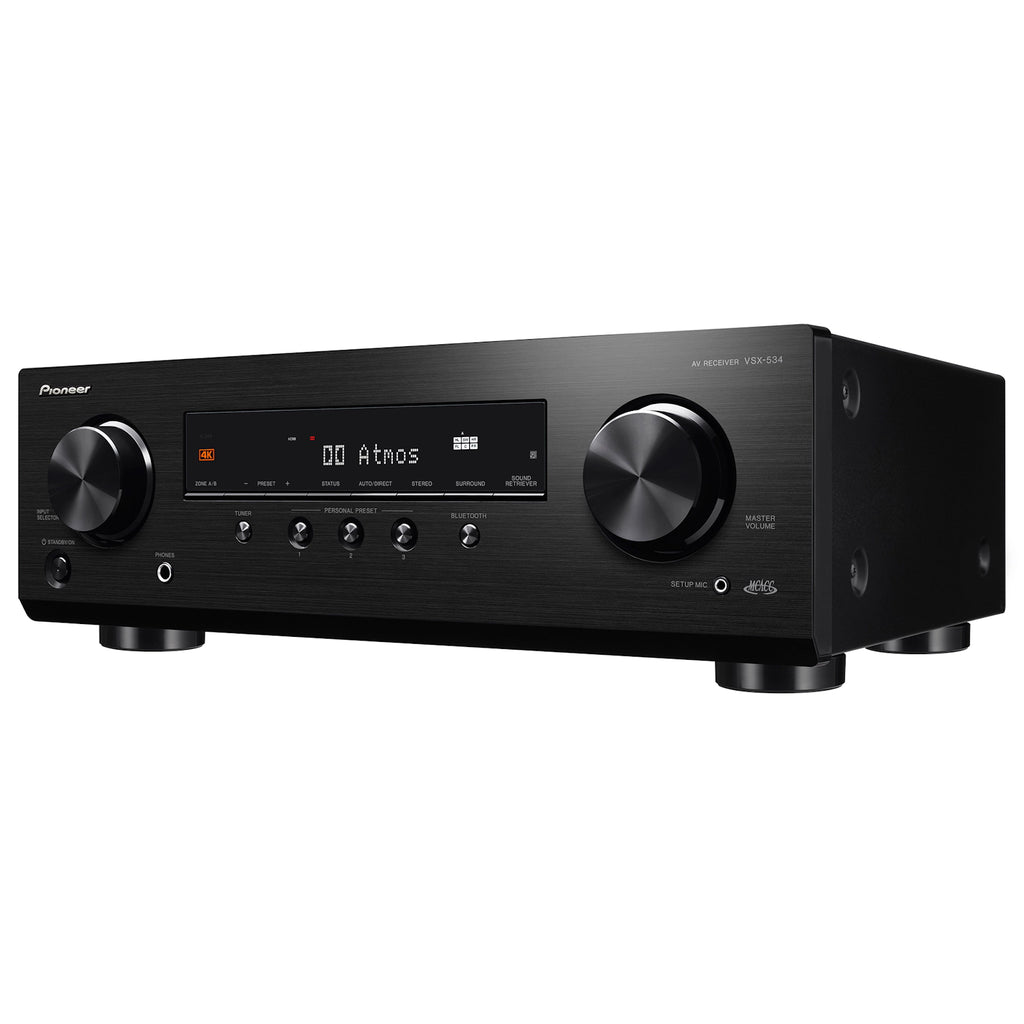

The Pioneer VSX-534 AV Receiver is a 5.2-channel system designed to deliver a robust home theater experience. It features a Direct Energy amplifier design, providing 80 watts per channel (20Hz-20kHz, 0.08% THD at 8 ohms, 2 channels driven) and up to 150 watts per channel (1kHz, 10% THD at 6 ohms, 1 channel driven). This receiver includes advanced audio technologies like MCACC for room calibration, ensuring optimized sound performance with automatic subwoofer crossover and 9-band EQ for precise adjustments. The device supports Bluetooth 4.2 for wireless streaming and offers multiple input options, including four HDMI inputs and one output, two digital audio inputs (optical and coaxial), and USB for easy connectivity. It lacks Wi-Fi and Ethernet ports, limiting network capabilities, but compensates with simple setup and usability. The receiver's compact design, coupled with its straightforward interface, makes it an excellent choice for users seeking a high-quality audio system without complex network features. However, its absence of advanced features like component video inputs and virtual speakers might be a drawback for some users. Overall, the Pioneer VSX-534 offers strong performance and essential features for a satisfying home audio experience.
Pioneer VSX-534: Top 10 Key Features
-
Supported Audio & Video Formats:
- The Pioneer VSX-534 supports various audio formats, including Dolby Atmos and DTS:X, ensuring immersive and dynamic sound quality for a true home theater experience.
-
Input and Output Options:

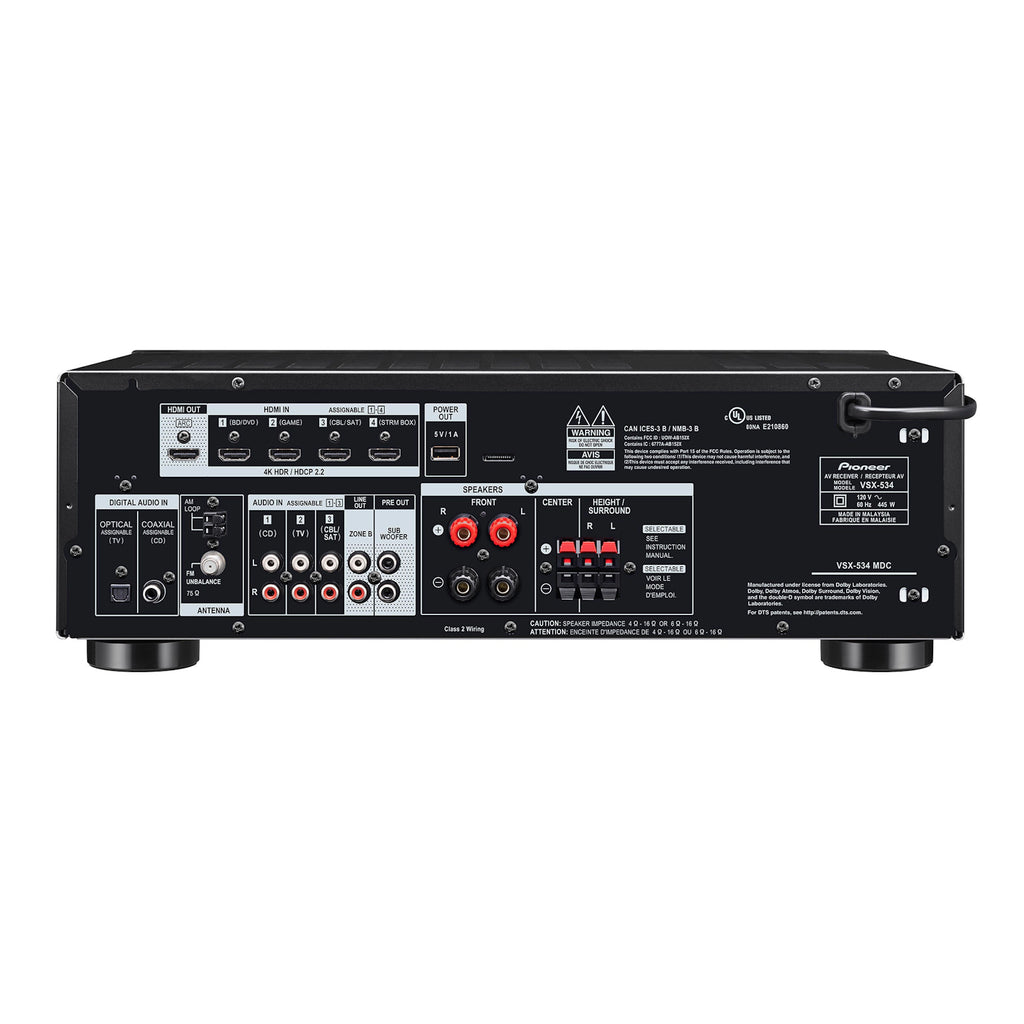

- The receiver features multiple input and output options, including four HDMI inputs, one HDMI output, two digital audio inputs (one optical and one coaxial), and two analog audio inputs. It also includes a USB terminal on the rear and a front USB/3.5mm stereo mini jack for added convenience.
-
HDMI Versions:
- The HDMI inputs and outputs support 4K/60p video pass-through, compatible with HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision, ensuring high-quality video performance.
-
Room Calibration Tools:
- The VSX-534 is equipped with MCACC (Multi-Channel Acoustic Calibration System), which automatically calibrates the sound to match your room’s acoustics, ensuring optimal audio performance. It also features automatic subwoofer crossover and 9-band EQ adjustments.
-
Number of Channels:
- This AV receiver supports 5.2 channels, providing robust and flexible audio output for various home theater configurations.
-
Amplifier Class:
- The Pioneer VSX-534 utilizes Direct Energy amplifier design, which ensures efficient power consumption and high-quality sound reproduction. It provides 80 watts per channel (20Hz-20kHz, 0.08% THD at 8 ohms, 2 channels driven) and up to 150 watts per channel (1kHz, 10% THD at 6 ohms, 1 channel driven).
-
Bluetooth Connectivity:
- Built-in Bluetooth 4.2 allows for wireless audio streaming from compatible devices, supporting profiles like A2DP 1.2 and AVRCP 1.3 and codecs such as SBC and AAC.
-
Audio Enhancements:
- The receiver includes features like Phase Control, Advanced Surround modes, Stream Direct (Direct and Pure Direct modes), and Auto Surround, enhancing the overall audio experience.
-
User-Friendly Interface:
- With a simple setup process, intuitive interface, and remote control, the VSX-534 is user-friendly, making it easy for users to enjoy high-quality audio and video without complex configurations.
-
Design and Build:
- The receiver has a compact and sleek design, with dimensions of 17.1 x 14.9 x 6.6 inches and a weight of 18.0 lbs, making it easy to fit into various home entertainment setups.
Pioneer VSX-534: Common Questions
Q1: What audio formats are supported by the Pioneer VSX-534 AV Receiver?
A1: The Pioneer VSX-534 AV Receiver supports Dolby Atmos and DTS:X audio formats, providing immersive and dynamic sound quality for a superior home theater experience.
Q2: How many HDMI inputs and outputs does the Pioneer VSX-534 5.2 Ch. AV Receiver have?
A2: The Pioneer VSX-534 5.2 Ch. AV Receiver features four HDMI inputs and one HDMI output, supporting 4K/60p video pass-through and compatibility with HDR10, HLG, and Dolby Vision.
Q3: Does the Pioneer VSX-534 have Bluetooth connectivity?
A3: Yes, the Pioneer VSX-534 comes with built-in Bluetooth 4.2, allowing for wireless audio streaming from compatible devices, supporting profiles like A2DP 1.2 and AVRCP 1.3.
Q4: What room calibration tools are included in the Pioneer VSX-534 AV Receiver?
A4: The Pioneer VSX-534 AV Receiver includes the Multi-Channel Acoustic Calibration System (MCACC), which automatically calibrates the sound to match your room’s acoustics, along with 9-band EQ adjustments and automatic subwoofer crossover.
Q5: How many channels does the Pioneer VSX-534 support?
A5: The Pioneer VSX-534 supports 5.2 channels, making it suitable for various home theater configurations.
Q6: What is the power output per channel of the Pioneer VSX-534 AV Receiver?
A6: The Pioneer VSX-534 AV Receiver delivers 80 watts per channel (20Hz-20kHz, 0.08% THD at 8 ohms, 2 channels driven) and up to 150 watts per channel (1kHz, 10% THD at 6 ohms, 1 channel driven).
Q7: Can I connect my iPhone or iPod to the Pioneer VSX-534?
A7: Yes, you can connect your iPhone or iPod to the Pioneer VSX-534 using the front USB/3.5mm stereo mini jack for convenient audio playback.
Q8: Where can I buy the Pioneer VSX-534 at the best price?
A8: To buy the Pioneer VSX-534 at the best price, check online retailers, authorized Pioneer dealers, and price comparison websites to find the most competitive offers.
Q9: Does the Pioneer VSX-534 AV Receiver support advanced surround modes?
A9: Yes, the Pioneer VSX-534 AV Receiver includes several advanced surround modes such as Phase Control, Advanced Surround, Stream Direct (Direct and Pure Direct modes), and Auto Surround to enhance the audio experience.
Q10: What are the dimensions and weight of the Pioneer VSX-534?
A10: The Pioneer VSX-534 has dimensions of 17.1 x 14.9 x 6.6 inches and weighs 18.0 lbs, making it a compact and sleek addition to your home entertainment setup.
Pioneer VSX-534 Spec
Pioneer VSX-534 Info Sheet
