Description
Overview

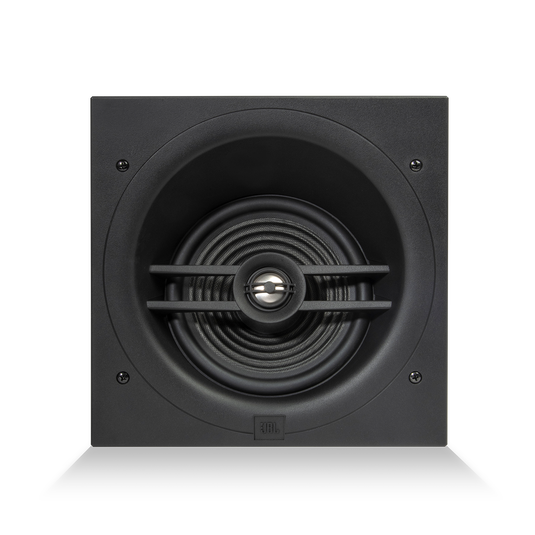

The JBL Stage 260CSA is a high-quality angled in-ceiling speaker designed to aim sound toward your listening area while remaining visually discreet. Its 6.5-inch polycellulose woofer combined with a 1-inch aluminum dome tweeter with acoustic lens ensures you get smooth bass, clear mids, and detailed highs. It features a zero-bezel metal grille and comes with JBL’s XL-2 installation system for flexibility in installation.
Ideal for immersive setups (front, center, or surround / Atmos height), especially when ceiling placement would otherwise send sound off-axis. The angled baffle corrects for that, giving you better imaging and clarity without needing electronic adjustments.
Key Features (with “why it matters”)
-
Angled baffle design
Aims the speaker toward your listening area — reduces sound loss and improves clarity when mounted in the ceiling. -
6.5″ polycellulose woofer
Provides solid bass and midrange performance with durability and low distortion. -
1″ aluminum dome tweeter with acoustic lens
Delivers crisp highs and wide dispersion for smooth treble coverage across the room. -
Wide frequency response (50 Hz – 25 kHz)
Covers both low and high frequencies for detailed sound in music, movies, and ambience. -
Sensitivity ~87 dB; 8-ohm nominal impedance
Easy to drive with most home AV receivers or amplifiers. -
Recommended amplifier power 20-100 W RMS
Provides dynamic headroom for clean, distortion-free playback. -
Zero-bezel metal grille & XL-2 mounting system
Blends seamlessly with the ceiling and ensures secure installation in ceilings up to 50 mm thick.
Technical Specifications
| Specification | Detail |
|---|---|
| Driver Configuration | 2-way; 6.5″ woofer + 1″ aluminum dome tweeter |
| Frequency Response | 50 Hz – 25 kHz (-6 dB) |
| Sensitivity | ≈ 87 dB (2.83 V @ 1 m) |
| Nominal Impedance | 8 Ω |
| Recommended Amplifier Power | 20-100 W RMS |
| Crossover Frequency | ≈ 2.8 kHz |
| Grille Dimensions | ≈ 248 × 248 mm |
| Cut-out Dimensions | ≈ 219 × 219 mm |
| Mounting Depth | ≈ 127 mm |
| Weight | ≈ 2.2 kg |
What’s in the Box
- JBL Stage 260CSA speaker unit
- Zero-bezel metal grille
- Cut-out template
- User manual
Recommended Use Cases & Compatibility
- Front, surround, or Atmos channels in home theatre setups needing angled projection.
- Rooms where speakers can’t be directly above the listener — angled baffle directs sound properly.
- Pairs with AV receivers or amplifiers rated 20-100 W per channel into 8 Ω.
Important Notes / Limitations
- Bass extension rolls off below ~50 Hz; pair with a subwoofer for deeper low-end impact.
- Requires ~127 mm ceiling cavity depth; confirm clearance before installation.
- Indoor use only; not designed for damp/outdoor environments.
Common Questions (FAQ)
Q: Can this be used for Atmos height speakers?
Yes, the angled design makes it well suited for height channels, aiming sound toward the seating area.
Q: Can the angle be adjusted?
No, the baffle is fixed — you rotate the speaker during installation to aim it correctly.
Q: Do I need a subwoofer?
For general music and dialogue, no. But for deep bass or cinematic effects, pairing with a subwoofer is recommended.
Warranty & Support
- 5-year manufacturer warranty via authorised JBL dealers.
- Documentation and support available through JBL service.
Trust Factors & Extras
- Part of JBL’s Stage Architectural Series — engineered for consistent performance and aesthetics.
- Zero-bezel paintable grille and secure XL-2 mounting system for professional finish and reliability.
- Balanced driver design ensures both clarity and durability in long-term installations.
