Overview

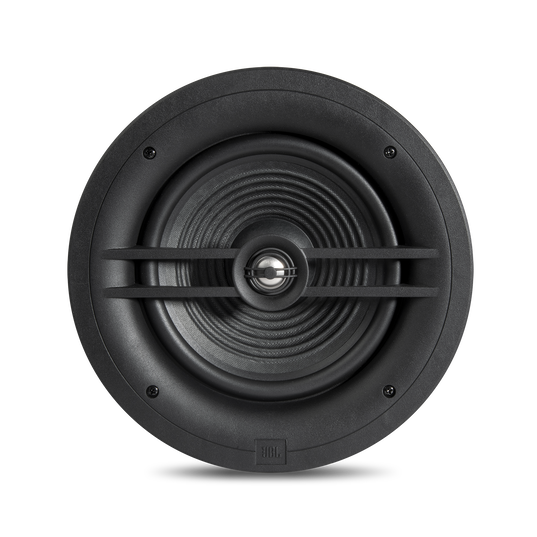

The JBL Stage 280C is a high-performance 2-way in-ceiling speaker from JBL’s Stage Architectural Series. Designed to vanish into your ceiling with its zero-bezel grille, it delivers strong, balanced sound thanks to an 8-inch polycellulose woofer and a 1-inch aluminum dome tweeter. It’s built for both immersive cinema setups and whole-home audio where clean looks and good sound matter.

Key design features include JBL’s Acoustic Lens waveguide for smoother off-axis response, a rigid baffle with acoustic smoothing, and the XL-2 installation system that works in ceilings up to ~2 inches thick. With 20-120 W RMS power handling, it provides enough headroom for dynamic sound scenes.

Key Features (with “why it matters”)

• 8″ polycellulose woofer
  Provides solid low-mid output, giving you punchy bass and mids even without a subwoofer in many ceiling-mounted setups. :contentReference[oaicite:0]{index=0}
• 1″ aluminum dome tweeter with Acoustic Lens waveguide
  Delivers clear highs, controlled off-axis dispersion so that the sound remains even across the room. :contentReference[oaicite:1]{index=1}
• Zero-bezel metal grille
  Blends into ceilings for cleaner aesthetics—less visible speaker hardware means less visual distraction. :contentReference[oaicite:2]{index=2}
• Power handling 20-120 W RMS
  Enough amplifier power range to ensure clean, dynamic sound at high volume peaks. :contentReference[oaicite:3]{index=3}
• Sensitivity ~ 90 dB (2.83 V @ 1 m)
  Doesn’t require a huge amp to drive well; efficient enough for many AV receivers. :contentReference[oaicite:4]{index=4}
• Wide frequency response (-6 dB): 42 Hz - 25 kHz
  Covers a broad spectrum so you get good bass extension and crisp highs. :contentReference[oaicite:5]{index=5}
• Rigorous installation system (XL-2)
  Handles ceiling thickness up to ~50 mm, secure mounting, minimizing vibration and ensuring longevity. :contentReference[oaicite:6]{index=6}

Technical Specifications

Specification	Detail
Driver Configuration	2-way; 8″ polycellulose woofer + 1″ aluminum dome tweeter
Frequency Response (-6 dB, on-axis)	42 Hz – 25 kHz
Sensitivity (2.83 V @ 1 m)	≈ 90 dB
Nominal Impedance	8 Ω
Power Handling (RMS)	20-120 W
Cut-out Diameter	≈ 244 mm (9.6″)
Grille Diameter	≈ 275 mm (10.8″)
Mounting Depth	≈ 108 mm (4.25-4.4″)
Product Weight	≈ 2.2 kg

What’s in the Box

• JBL Stage 280C speaker unit
• Zero-bezel grille (paintable)
• Cut-out template
• Quick-start / installation guide

Recommended Use Cases & Compatibility

• Ideal for ceiling mounting in home theatre setups (surrounds, overhead / Atmos channels) where you want immersive sound without visible hardware.
• Suitable for multi-room audio where discreet speakers are preferred.
• Best paired with amplifiers or AVRs that can drive 8-Ω loads comfortably with 20-120 W per channel.
• Use zero-bezel grille and finish to match ceiling decor for aesthetic integration.

Important Notes / Limitations

• Bass extension is good down to ~42 Hz, but for very deep bass effects or large rooms a subwoofer might still be needed.
• Make sure there’s sufficient clearance behind the ceiling and that ceiling material is not overly thick (>50 mm) unless using appropriate stud support. XL-2 helps but physical space still matters. :contentReference[oaicite:7]{index=7}
• Impedance is 8 Ω—speakers that aren’t stable at this impedance or weak amps may underperform at high volumes.
• Zero-bezel grille is paintable, but painting must be done carefully to avoid affecting grille‐magnet fit.

Common Questions (FAQ)

Q: Will this speaker be visible after installation?
It uses a zero-bezel grille that sits flush with the ceiling. Once painted or matched, it becomes very discreet. :contentReference[oaicite:8]{index=8}

Q: Can it be used as a front channel or just overhead/surround?
It’s best suited for overhead, surround, or Atmos use. While it can handle full-range audio, the ceiling placement means low bass will be less impactful than a floorstanding or bookshelf pair.

Q: What type of amplifier power should I aim for?
An amp in the range of 20-120 W RMS per channel is recommended. Enough headroom ensures clean, distortion-free sound. :contentReference[oaicite:9]{index=9}

Q: Is the grille paintable?
Yes — the metal grille is designed to be painted to match your ceiling. :contentReference[oaicite:10]{index=10}

Warranty & Support

• 5-year manufacturer warranty via JBL authorised dealers. :contentReference[oaicite:11]{index=11}
• Support documentation and installation guide included in box.

Trust Factors & Extras

• Part of JBL’s Stage 2 Architectural / Stage lineup — known for good build, good sound, and durable parts. :contentReference[oaicite:12]{index=12}
• Premium crossover components (air-core inductors, quality capacitors) for maintaining fidelity at higher volume. :contentReference[oaicite:13]{index=13}
• Use of acoustic lens & waveguide for better dispersion so more even coverage across the room. :contentReference[oaicite:14]{index=14}
