Description

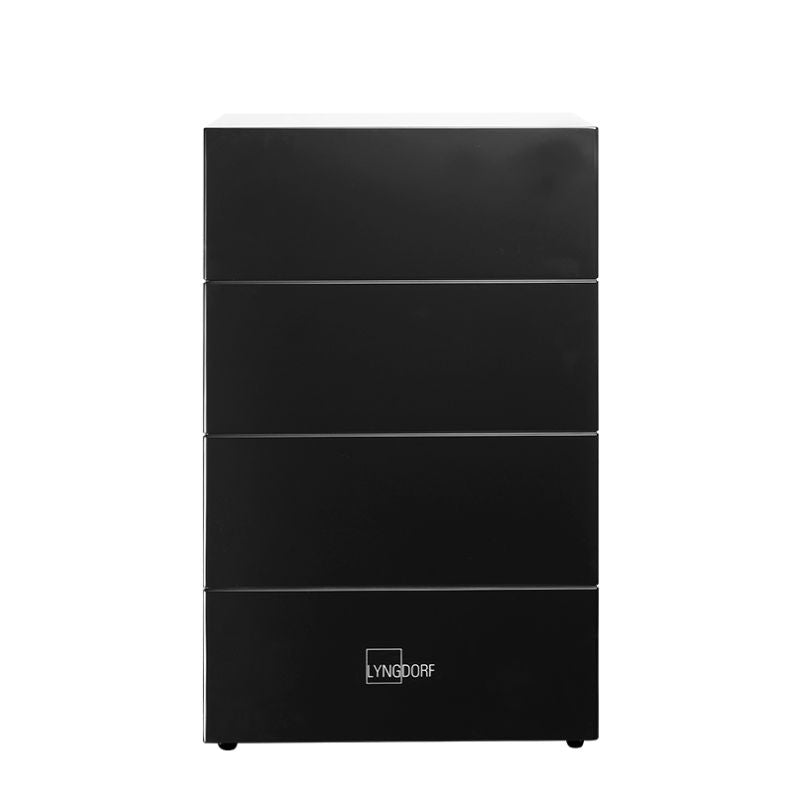

Lyngdorf Audio BW-20 Overview
BW stands for Boundary woofer – a Lyngdorf approach where a subwoofer is designed to be placed near the wall boundaries, for example right in the corner, achieving the best bass impulse response by avoiding delayed bass bouncing back off the walls, instead taking advantage of room acoustics. The BW-20 is the company’s largest BW model, extending the line-up of the compact in-room woofers BW-2 and BW-3.
Lyngdorf Audio BW-20 Features
The BW-20 is a high-bandwidth woofer, reaching down to 19Hz but also up to 500Hz. This allows seamless integration with any size front speakers and crossover filter type and avoids any sound performance gap even if the front speakers are not low-reaching full-range speakers.
The overall construction with both woofers on one side, closet cabinet design, shallow cabinet depth, and satin-matte finish allow both in-wall and in-room placement. The best performance and speaker integration will be achieved as an in-wall woofer together with in-wall speakers, while the cabinet design also allows placement in the room, used as a free-standing boundary woofer firing into the room or against the wall.
The BW-20 is a boundary woofer that can be placed near the wall boundaries in front corners, to achieve the best impulse response by avoiding delayed bass bouncing back off the walls. This allows the speakers to take full advantage of room acoustics, allowing a wide sound dispersion across a large area.
It is built with a pair of 12" woofers in a rigid cabinet, with vented magnets, double spiders, and aluminum cones. Its overall construction, shallow cabinet depth, and a satin matte finish make it suitable for in-wall and in-room placement.
For larger installations, the BW-20 is complemented by the Lyngdorf LS and Discreet custom installation speaker lines, which were introduced at ISE in Barcelona last year. They are aimed at both stereo and multichannel systems, with seven models crafted to suit different installations from a modern living room with in-wall speakers next to the TV up to the largest home cinema with a big screen and immersive audio.
Lyngdorf Audio BW-20 Specifications
| Description: | Passive boundary woofer closed |
| Woofer: |
Two 12” long throw +/- 20mm, 67mm voice coil, aluminum cone, double spider, vented magnet |
| Enclosure: | MDF closed 64 L net |
| Frequency range: |
19 – 500 Hz (-3 dB) Frequency extension depending on EQ |
| Nominal Impedance: | 4 Ohm |
| Power handling: | 700 W (IEC) |
| Maximum SPL: | 118 dB |
| Connections: | Neutrik Speakon |
| Mounting: | Floor standing |
