Description

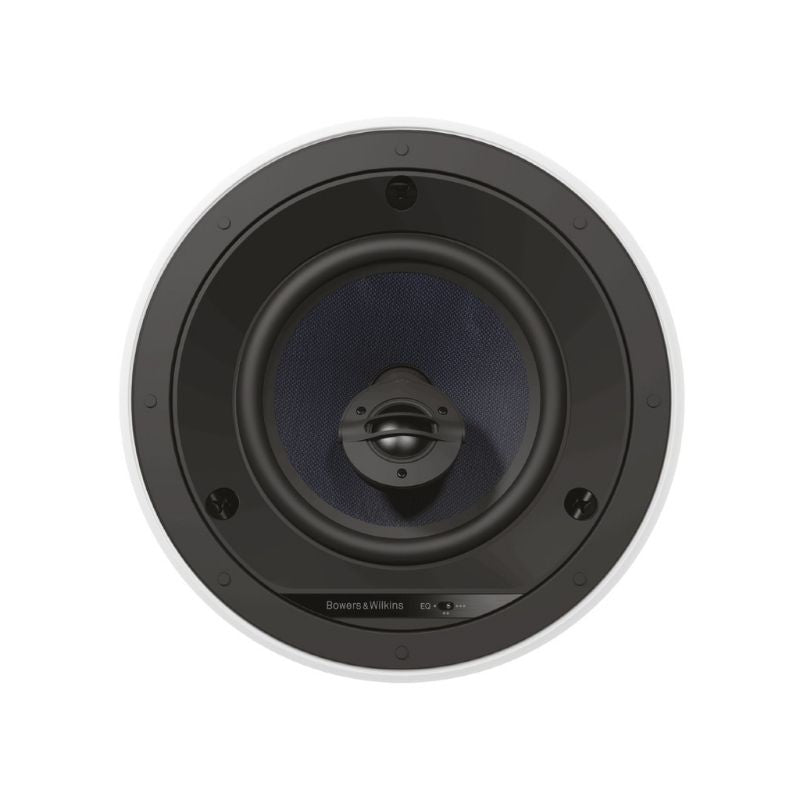

B&W CCM663 Overview
The CCM663 uses the same technology as their cabinet speakers - including a high-quality Nautilus tweeter and a Blue Aramid Fibre woofer - to produce a dazzling array of details, right up to 50,000Hz. It is the ideal partner for a top-quality amplifier and can be used in stereo or as part of a home cinema surround system.
The CCM663 also boasts a cleverly designed treble comb filter which improves bass response and clarity while also reducing the distortion that often results from a poor-quality tweeter. Its three-position EQ switch makes it easy to find the perfect setting for your room. The CCM663 has a maximum recommended amplifier power of 130W which will cover most consumer needs.
B&W CCM663 Features
The Bowers & Wilkins Custom Installation Series are engineered to be virtually invisible – no one will know you have them in your home. Super-thin bezels that can be painted in a colour of your choice mean they’ll blend into their surroundings, and dark internal surfaces help to make them even more discreet.
The B&W CCM663 is a true high-performance ceiling speaker with a Nautilus swirl-loaded aluminium dome tweeter and blue Aramid Fibre cone bass/midrange driver for the clearest, most dynamic sound. A die-cast chassis for the bass/midrange driver provides extra rigidity which helps to deliver cleaner, faster bass while a three-position EQ switch enhances off-axis response.
The Nautilus tweeter is paired with a pivoting woofer to deliver incredible sound from all angles. The CCM663 is also fitted with an EQ switch so you can optimise the treble output to suit your listening position.
Best of all, the CCM663 is a cost-effective route to high-quality ceiling mount sound without the need for additional surround speakers. These easy-to-fit speakers can be painted to harmonize with your interior decor and don’t require a significant amount of mounting hardware.
B&W CCM663 Specifications
| Description | 2-way in-ceiling system |
| Drive Units | 1x ø25mm (1in) Nautilus™ swirl loaded aluminium dome tweeter 1x ø150mm (6in) blue Aramid Fibre cone bass/midrange |
| Frequency Range (-6dB) | 45Hz – 50kHz |
| Recommended Amp Power | 25 – 130w |
| Sensitivity SPL (2.83V, 1m) | 88dB |
| Impedance Nominal (min) | 8Ω (4.5Ω) |
| Frame diameter | 240mm (9.5in) |
| Cut-out diameter | 202mm (8in) |
| Depth behind surface | 133mm (5.2in) |
| Protrusion | 4mm (0.2 in) |
