Description
B&W CCM664 Overview

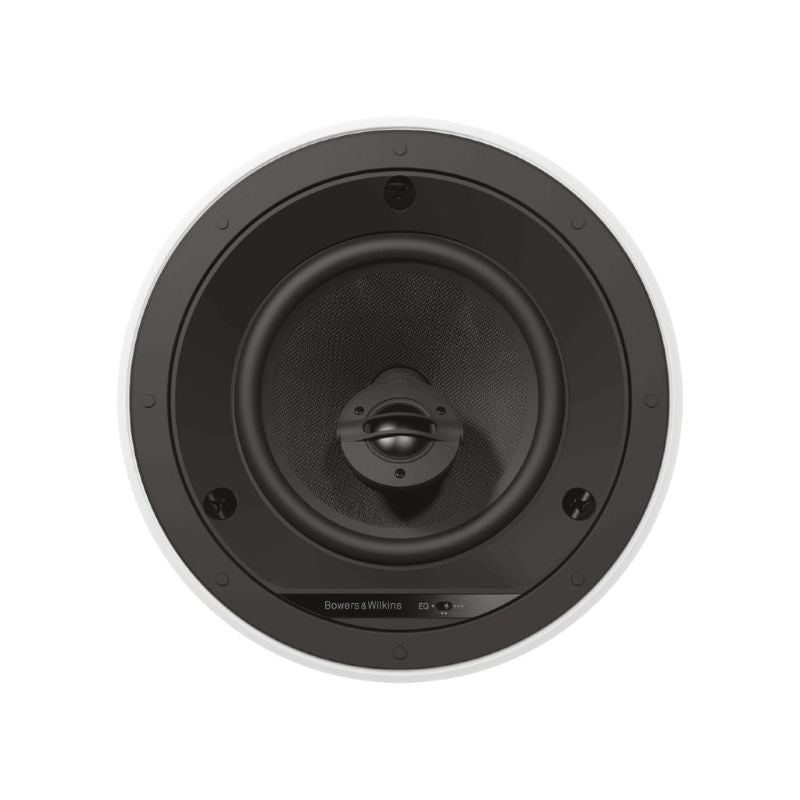

The B&W CCM664 In-Ceiling Speaker is a high-performance 2-way audio system designed for in-ceiling installations, offering a balance of quality sound reproduction and discreet aesthetics. Its key features include a 1-inch soft dome tweeter and a 6-inch black glassfibre cone bass/midrange driver, delivering a frequency range of 45Hz to 35kHz (-6dB) with a sensitivity of 87dB SPL (2.83V, 1m) and a nominal impedance of 8 ohms (with a minimum of 4.5 ohms). With a recommended amplifier power of 25 to 130 watts, this speaker is suitable for a variety of home audio setups. Its frame diameter measures 9.5 inches, with a shallow depth of 5.2 inches behind the surface and a cut-out diameter of 8 inches, making it easy to install in standard ceiling configurations. Additionally, it is compatible with the C6 pre-mount kit and recommended back box C6, ensuring seamless integration and optimized performance in any room.
B&W CCM664: Top 10 Key Features
-
Driver Material: Utilizes a 1-inch soft dome tweeter and a 6-inch black glassfibre cone bass/midrange driver for clear and balanced sound reproduction.
-
SPL Levels: Offers a sensitivity of 87dB SPL (Sound Pressure Level) at 2.83V, 1 meter distance, ensuring adequate volume levels with minimal power input.
-
Impedance Rating: Features a nominal impedance of 8 ohms (with a minimum of 4.5 ohms), compatible with a wide range of amplifiers and audio systems.
-
Speaker Type: Classified as a 2-way in-ceiling system, providing a dynamic range of frequencies from 45Hz to 35kHz (-6dB).
-
Driver Configuration: Consists of a single 1-inch soft dome tweeter responsible for high-frequency reproduction and a 6-inch black glassfibre cone bass/midrange driver for midrange and bass frequencies.
-
Power Output: Suitable for amplifiers with power outputs ranging from 25 to 130 watts, ensuring optimal performance across various listening environments.
-
Dimensions: Features a frame diameter of 9.5 inches, a depth behind the surface of 5.2 inches, and a cut-out diameter of 8 inches, facilitating easy installation in standard ceiling configurations.
-
Protrusion: With a protrusion of only 0.2 inches, the speaker remains unobtrusive once installed, maintaining the aesthetics of the room.
-
Pre-mount Kit: Compatible with the C6 pre-mount kit, providing additional support and ease of installation.
-
Recommended Back Box: Advised to be used with the C6 recommended back box for enhanced sound performance and protection.
B&W CCM664: Common Questions
Q1: What is the B&W CCM664 In-Ceiling Speaker, and how does it improve my audio setup?
A1: The B&W CCM664 In-Ceiling Speaker is a high-quality audio solution designed to enhance your listening experience. It features a two-way design with a 1x ø25mm (1in) soft dome tweeter 1x ø150mm (6in) black glassfibre cone bass/midrange, ensuring clear and balanced sound. These speakers are designed for flush-mount installation in your ceiling, seamlessly integrating into your room's aesthetics. They are a great choice for discreetly improving your audio setup with premium sound quality.
Q2: Where can I purchase the B&W CCM664 In-Ceiling Speaker?
A2: You can buy the B&W CCM664 In-Ceiling Speaker from authorized Bowers & Wilkins dealers, established audio retailers, or reputable online stores specializing in high-quality audio equipment. Choosing a trusted source ensures authenticity and warranty coverage.
Q3: What is the best price for the B&W CCM664 In-Ceiling Speaker?
A3: The best price for the B&W CCM664 In-Ceiling Speaker may vary depending on factors such as the retailer, location, and ongoing promotions. To find the most competitive offer, compare prices from different sources. Keep in mind that these speakers deliver exceptional sound quality while seamlessly blending into your room's decor.
Q4: Can these speakers be used for home theater systems?
A4: Yes, the B&W CCM664 In-Ceiling Speaker is a versatile choice for home theater setups. Their two-way design and wide frequency response ensure clear and balanced sound reproduction, enhancing your home theater experience.
Q5: Do I need professional installation for the CCM664?
A5: While experienced individuals may handle installation, professional installation is recommended for optimal performance. Professionals ensure correct positioning and integration of the speakers, resulting in the best audio quality and safety.
Q6: Are these speakers suitable for multi-room audio systems?
A6: Yes, the CCM664 is a versatile speaker that can be used in multi-room audio setups, providing high-quality sound for various applications.
Q7: What type of audio content do these speakers excel at reproducing?
A7: The CCM664 excels at reproducing a wide range of audio content, including music and movie soundtracks. Their broad frequency response ensures accurate playback.
Q8: Is a separate enclosure required for these speakers?
A8: No, the CCM664 is typically considered a sealed speaker, eliminating the need for a separate enclosure or backbox. Installation is straightforward.
Q9: Can I customize the appearance of these speakers to match my room decor?
A9: Yes, these speakers come with customizable grilles that can be painted to match your ceiling's aesthetics, ensuring a seamless blend with your room's decor.
Q10: What is the warranty for the B&W CCM664 In-Ceiling Speaker?
A10: Warranty terms may vary by region and retailer, but Bowers & Wilkins typically offers a 5-year warranty for their products. Verify the specific warranty terms with the seller at the time of purchase for comprehensive coverage.
B&W CCM664 Spec
B&W CCM664 Info Sheet
