Description

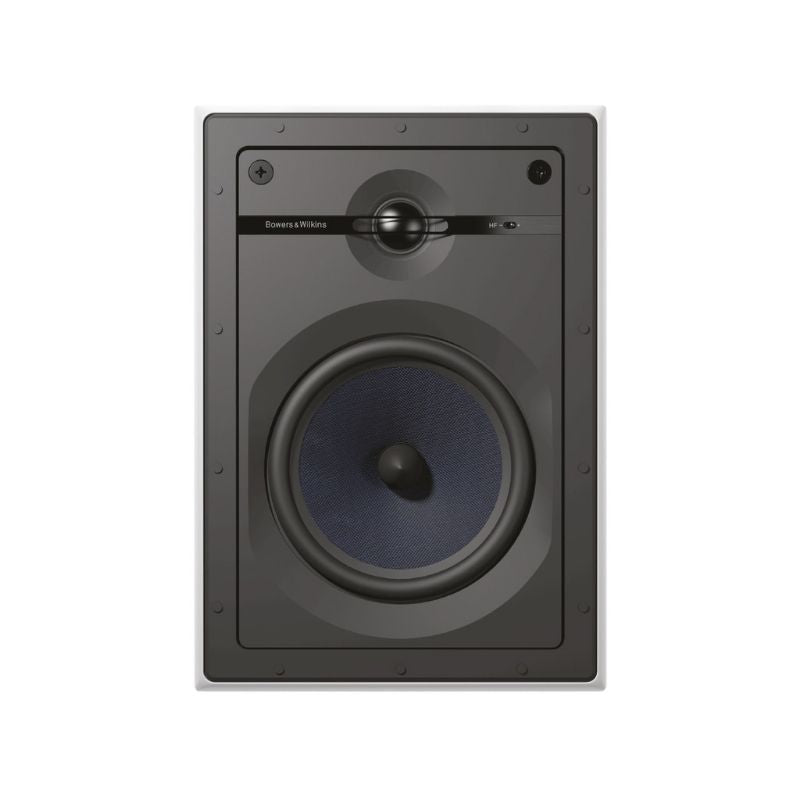

B&W CWM663 Overview
The B&W CWM663 is a 2-way in-wall speaker system featuring a ø25mm (1in) Nautilus tube loaded aluminum dome tweeter and a ø150mm (6in) blue Aramid Fibre cone bass/midrange driver, offering clear and balanced audio reproduction. With a frequency range of 45Hz to 50kHz (-6dB), it delivers comprehensive sound coverage. Boasting a sensitivity of 88dB SPL (2.83V, 1m) and a nominal impedance of 8 Ohms (with a minimum of 4.5 Ohms), it efficiently utilizes amplifier power, ensuring optimal performance. The speaker's frame dimensions are 315mm (12.4in) in height and 221mm (8.7in) in width, with a cut-out height of 279mm (11in) and width of 183mm (7.2in), facilitating easy installation in standard wall openings. Additionally, it features a shallow depth of 95mm (3.7in) behind the surface and protrudes only 4mm (0.2in), maintaining a sleek appearance. The inclusion of the PMK W6 pre-mount kit and BB 6W back box streamlines installation and enhances overall sound quality. It is part of the CI 600 Series, offering high-quality audio for residential and commercial applications.
B&W CWM663: Top 10 Key Features
- Driver Configuration: The B&W CWM663 is a 2-way in-wall speaker system featuring a ø25mm (1in) Nautilus tube loaded aluminum dome tweeter and a ø150mm (6in) blue Aramid Fibre cone bass/midrange driver, offering balanced audio reproduction.
- Frequency Range: It delivers a wide frequency response range of 45Hz to 50kHz (-6dB), ensuring comprehensive sound coverage and detailed audio reproduction across the spectrum.
- Power Handling: With a recommended amplifier power range of 25 – 150 watts, it efficiently utilizes amplifier power for optimal performance.
- Sensitivity Levels: Boasting a sensitivity of 88dB SPL (2.83V, 1m), it efficiently converts electrical power into sound, delivering clear audio with minimal distortion.
- Impedance Rating: The nominal impedance is rated at 8 Ohms (with a minimum of 4.5 Ohms), ensuring compatibility with a wide range of amplifiers and audio systems.
- Frame Dimensions: The speaker's frame measures 315mm (12.4in) in height and 221mm (8.7in) in width, facilitating easy installation into standard wall openings.
- Cut-out Dimensions: It features a cut-out height of 279mm (11in) and width of 183mm (7.2in), allowing for seamless integration into walls.
- Depth Behind Surface: With a depth of 95mm (3.7in) behind the surface, it fits into spaces with limited depth while protruding only 4mm (0.2in) for a sleek appearance.
- Pre-mount Kit and Back Box: Includes the PMK W6 pre-mount kit and BB 6W back box for simplified installation and enhanced sound quality.
- Series and Design: Part of the CI 600 Series, it features a 2-way in-wall system design, offering high-quality audio for residential and commercial applications.
B&W CWM663: Common Questions
Q1: What is the B&W CWM663 In-Wall Speaker, and where can I buy B&W CWM663?
A1: The B&W CWM663 In-Wall Speaker is a high-quality, two-way in-wall speaker designed for superior audio performance. To purchase the B&W CWM663, you can explore authorized B&W dealers or reputable audio equipment retailers, both online and in physical stores. Buying from trusted sources ensures product authenticity.
Q2: Can the B&W CWM663 be used for both music and home theater setups?
A2: Yes, the B&W CWM663 In-Wall Speaker is versatile and suitable for a wide range of audio setups, including both music and home theater systems. Its balanced sound reproduction makes it a valuable addition to various scenarios.
Q3: What is the recommended amplifier for the B&W CWM663?
A3: The choice of amplifier for the B&W CWM663 In-Wall Speaker depends on your specific setup and preferences. It is compatible with a variety of amplifiers, so you can choose one that suits your needs.
Q4: Can the grille of the B&W CWM663 be painted to match my room's decor?
A4: Yes, the grille of the B&W CWM663 In-Wall Speaker is paintable, allowing you to customize its appearance to seamlessly blend with your room's decor.
Q5: Where can I find the best price for the B&W CWM663?
A5: To find the best price for the B&W CWM663 In-Wall Speaker, compare prices from various authorized B&W dealers and reputable audio equipment retailers, both online and in physical stores. Keep an eye out for promotions, discounts, or special offers to potentially secure a competitive price.
Q6: Is professional installation necessary for the B&W CWM663 In-Wall Speaker?
A6: While the B&W CWM663 In-Wall Speaker can be installed by experienced DIY enthusiasts, professional installation is often recommended to ensure proper placement, wiring, and optimal performance, especially if you are not familiar with in-wall speaker installation.
Q7: What is the warranty coverage for the B&W CWM663 In-Wall Speaker?
A7: Warranty coverage for the B&W CWM663 may vary depending on your location and the retailer. It's advisable to check with the seller or visit the official B&W website for comprehensive warranty information and terms.
Q8: Can the B&W CWM663 be used in a humid or outdoor environment?
A8: The B&W CWM663 In-Wall Speaker is designed for indoor use and may not be suitable for outdoor or highly humid environments. It is best suited for dry and controlled indoor spaces.
Q9: Are installation instructions included with the B&W CWM663 In-Wall Speaker?
A9: Yes, the B&W CWM663 typically includes installation instructions to guide you through the installation process. Following these instructions will help ensure a proper setup.
Q10: Where can I find the best price for the B&W CWM663?
A10: To find the best price for the B&W CWM663 In-Wall Speaker, compare prices from various authorized B&W dealers and reputable audio equipment retailers, both online and in physical stores. Keep an eye on promotions, discounts, or special offers for potential savings on this in-wall speaker.
B&W CWM663 Spec
B&W CWM663 Info Sheet
