Description

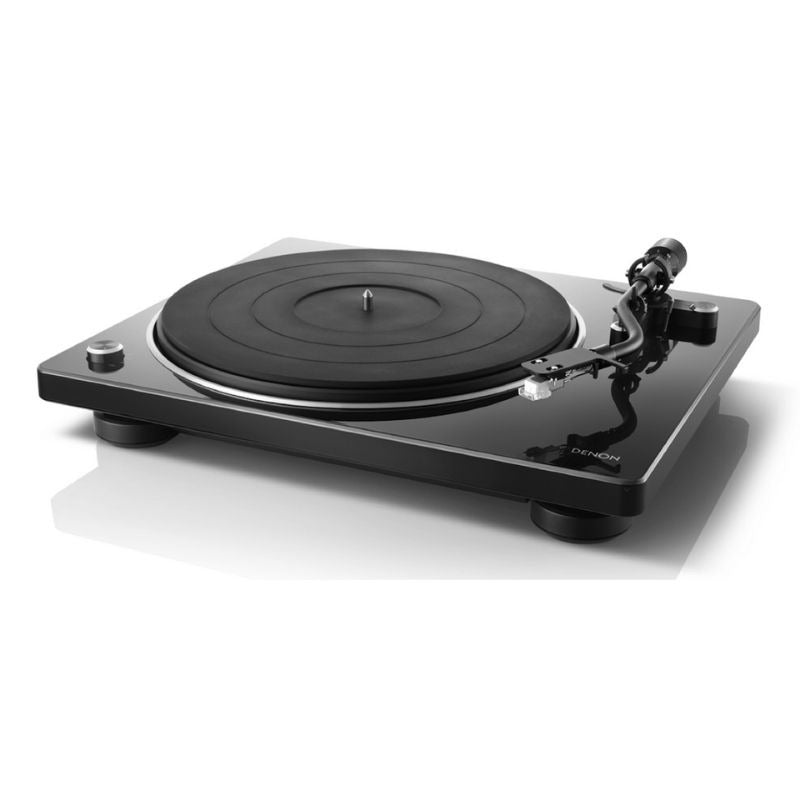

belt driven turntbal ? s-type tone arm with pre-installed MM cartirdge for instant use ?
Built-in phono equaliser ? switch for phono or liine level output ? high quality MM cartridge
? cartridge replaceable ? antiskating adjustable ? counterweight adjustabel ? auto lift at end
of the disc ? detachable dust cover with stand
--
| Rotation Speed | 33 1/3, 45, 78 rpm |
| Drive Method | Belt-Drive |
| Motor | DC Servo |
| Wow and Flutter | 0.1% WRMS |
| Signal to Noise Ratio | 62 dB |
| Design | Static Balanced, Curved |
| Effective Arm Length | 8.66" / 220 mm |
| Overhang | 0.63" / 16 mm |
| Cartridge Weight | Compatible: 5 to 13 g / 59.2 to 127.5 mN |
| Cartridge Type | MM-Type |
| Output Voltage
|
|
| Needle Pressure Range
|
0 to 4 g / 0 to 39.2 mN
1 Gradation is 0.1 g / 0.98 mN Optimal: 2 g / 19.6 mN |
| Replacement | DSN-85 |
| Output | 1 x Stereo RCA Pair with Ground Screw |
| Dimensions (W x H x D) | 16.2 x 5.2 x 13.7" / 41.1 x 13.2 x 34.8 cm (Including Dust Cover) |
| Weight | 12.4 lb / 5.6 kg Including Dust Cover |
