Overview

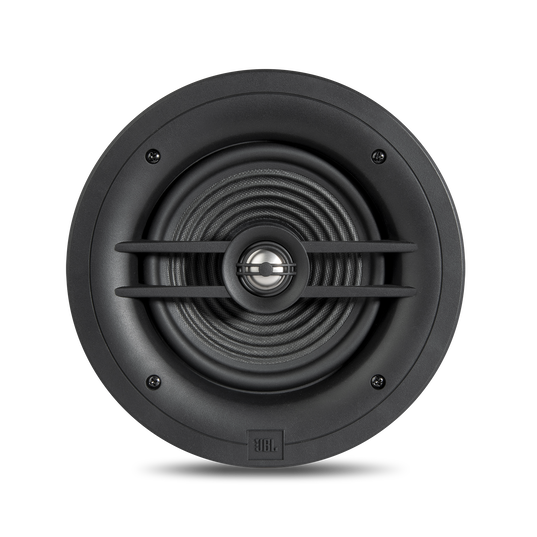

The JBL Stage 260C is a 2-way in-ceiling speaker built to deliver clear, punchy sound without being visually obtrusive. It features a 6.5-inch polycellulose woofer and a 1-inch aluminum dome tweeter with an Acoustic Lens waveguide, allowing high frequencies to disperse smoothly across the listening area while keeping the speaker discreet.

Designed for use in ceilings with up to roughly 50 mm thickness, it uses JBL’s XL-2 bracket system for secure installation and includes a zero-bezel metal grille for visual stealth. Ideal for overhead, surround, or whole-room audio setups where you want JBL quality but minimal visual intrusion.

Key Features (with “why it matters”)

• 6.5″ polycellulose cone woofer
  Gives solid bass and mid-bass performance; moves air well and handles bass lines in music/movies without needing a large enclosure.
• 1″ aluminum dome tweeter with Acoustic Lens waveguide
  Ensures clear highs and better off-axis dispersion so everyone in the room hears good treble detail, not just those directly below the speaker.
• Zero-bezel metal grille
  Blends into the ceiling for a cleaner look; paintable grille lets you match ceiling color so speaker “disappears” visually.
• XL-2 installation system
  Supports ceilings up to ~50 mm thick; rear clamps grip securely so installation is stable and vibration minimized.
• Wide frequency response: 50 Hz – 25 kHz (-6 dB)
  Covers both the lower end enough for good bass/mids and high treble detail for ambience and clarity.
• Power handling up to 100 W RMS
  Gives room for dynamic peaks in movies or music without distortion, when paired with a capable amplifier.
• Sensitivity ~87 dB; Impedance 8 Ω
  Moderately efficient and compatible with most home AV receivers or amps; ensures you don’t need an extreme power source to get good results.

Technical Specifications

Specification	Detail
Driver Configuration	2-way; 6.5″ polycellulose woofer + 1″ aluminum dome tweeter
Frequency Response (-6 dB, on-axis)	50 Hz – 25 kHz
Power Handling (RMS)	20-100 W
Sensitivity (1 W @ 1 m)	≈ 87 dB
Nominal Impedance	8 Ω
Cut-out Diameter	203 mm (≈ 8 in)
Overall Diameter with Grille	≈ 235-240 mm
Mounting Depth	≈ 97-100 mm
Warranty	5 years

What’s in the Box

• JBL Stage 260C speaker unit
• Zero-bezel metal grille (paintable)
• Cut-out template
• User/installation manual

Recommended Use Cases & Compatibility

• Overhead Atmos or height channels in home cinema systems.
• Surround or ambient channels where speakers are mounted in ceilings.
• Whole-home audio installations where you want sound without visible speakers.
• Pairs best with AV receivers/amps able to drive 8-ohm loads and deliver 50-100 W per channel for best performance.

Important Notes / Limitations

• Bass below ~50 Hz will roll off; for deep bass effects a subwoofer is advised.
• Installation depth must be checked; if ceiling space is shallow you might need to recess wiring or ensure bracket clearance.
• Sensitivity is moderate — high volume may require pushing your amplifier; distortion or clipping can creep in with weaker gear.
• Zero-bezel grille is paintable, but painting must be done carefully to avoid affecting fit or magnet strength.

Common Questions (FAQ)

Q: Can this be used in a damp or outdoor ceiling?
No — this speaker is for indoor use unless you have a specially protected installation (not rated for weather exposure).

Q: Will it blend visually in room decor?
Yes — thanks to its zero-bezel grille which sits flush and can be painted to match ceiling color.

Q: What amp power is best?
20-100 W per speaker gives good results, with conservative power leaving room for headroom.

Warranty & Support

• Covered by JBL’s standard 5-year warranty via authorised dealer network.
• User manual and installation documentation included.

Trust Factors & Extras

• Uses Acoustic Lens & Waveguide for smoother, more even dispersion.
• Zero bezel metal grille gives clean visual integration.
• Trusted JBL Stage Series – good build quality, reliable parts.
