Description
Overview

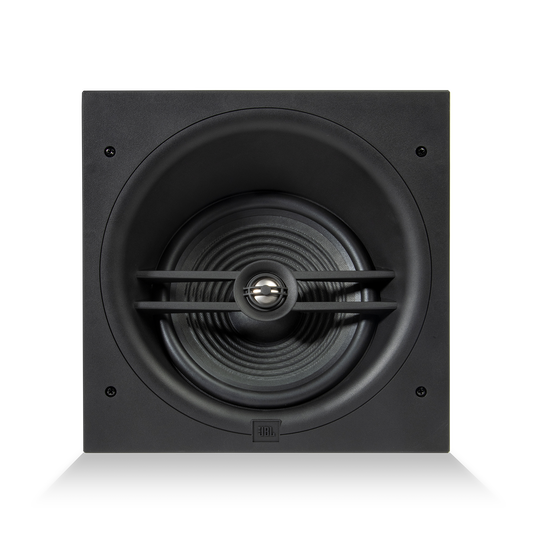

The JBL Stage 280CSA is a high-performance in-ceiling speaker with an angled baffle designed to aim sound toward the listening area. It combines an 8-inch polycellulose woofer with a 1-inch aluminum dome tweeter (with acoustic lens) for full-range sound that remains discreet thanks to a zero-bezel metal grille and refined installation design.
Built with acoustic smoothing, rigid baffles, and JBL’s architectural XL-2 mounting system (for ceilings up to ~50 mm thick), the 280CSA provides clarity, dynamic range, and flexible installation. Great for overhead channels, surround setups, or areas where you want sound without visible hardware.
Key Features (with “why it matters”)
-
Angled baffle design
The angled front directs sound toward listeners even if the speaker is off-axis in ceiling, improving clarity and imaging. -
8″ polycellulose cone woofer with rubber surround
Delivers strong mid-bass performance with durability and reduced distortion under load. -
1″ aluminum dome tweeter with acoustic lens waveguide
Provides crisp highs and controlled dispersion so treble doesn’t harshly drop off side angles. -
Zero-bezel metal grille
Blends seamlessly into the ceiling; paintable for near-invisible installation. -
Wide frequency response: ~42 Hz – 25 kHz (-6 dB on-axis)
Covers enough bass for most content and delivers high-frequency detail for ambience and clarity. -
High sensitivity (~90 dB) & 8-ohm nominal impedance
Eases pairing with amplifiers; doesn’t demand huge power for good volume. -
Recommended amplifier power: 20-120 W RMS
Gives decent headroom for dynamic sound without risking damage or distortion under typical use. -
XL-2 mounting system
Facilitates installation in thicker ceilings (up to ~50 mm), ensures secure fit and less vibration or sagging over time.
Technical Specifications
| Specification | Detail |
|---|---|
| Driver Configuration | 8″ polycellulose woofer + 1″ aluminum dome tweeter with acoustic lens |
| Frequency Response (-6 dB on-axis) | 42 Hz – 25 kHz |
| Sensitivity (2.83 V @ 1 m) | ≈ 90 dB |
| Nominal Impedance | 8 Ω |
| Recommended Amplifier Power | 20-120 W RMS |
| Crossover Frequency | ~ 2.9 kHz |
| Grille / Overall Dimensions | ≈ 289 × 289 mm |
| Cut-out Dimensions | ≈ 260 × 260 mm |
| Mounting Depth | ≈ 138 mm |
| Weight (single unit) | ≈ 2.9 kg |
What’s in the Box
- JBL Stage 280CSA speaker unit
- Zero-bezel metal grille
- Cut-out template
- User / Installation manual
Recommended Use Cases & Compatibility
- Overhead or ceiling-height channels in home theatre systems where you want focused sound directed toward listeners.
- Large rooms or high ceilings, due to the depth and woofer size providing more output and lower bass.
- Best paired with amplifiers that can cleanly drive 8-ohm loads and deliver 20-120 W for headroom and dynamic audio.
- Suitable for installing in thicker ceilings thanks to XL-2 mounting system; ensure adequate structural support and clearance behind ceiling space.
Important Notes / Limitations
- Rear clearance needed: mounting depth (~138 mm) is quite deep, ensure ceiling cavity allows space.
- Bass extension below ~42 Hz will roll off; for very low bass effects or content, adding a subwoofer may be beneficial.
- Because of the angled baffle, the directionality improves clarity but requires planning: aim toward the listening area rather than straight down.
- Impedance is 8 Ω; some lower-power receivers may struggle with demands of volume and dynamics in larger rooms.
Common Questions (FAQ)
Q: Can this speaker be used for Atmos or height channels?
Yes — the angled design makes it especially suitable for overhead / height channels where you want the sound directed toward listeners rather than straight down.
Q: Will the grille look visible?
The zero-bezel metal grille is designed to sit flush with the ceiling; painting can make it blend in even further.
Q: What amplifier power is ideal?
Use something in the 20-120 W RMS range for best dynamics; lower power may still work but with less headroom.
Warranty & Support
- Five-year manufacturer warranty through authorized JBL dealers.
- Installation and user manuals provided; support available via JBL’s customer service.
Trust Factors & Extras
- Part of JBL’s Stage Architectural Series — premium build, recognized driver materials, and thoughtful installation design.
- Zero-bezel grille + XL-2 system make both aesthetics and performance strong points.
- Angled baffle and acoustic smoothing show JBL invests in making ceiling-mount sound quality not just functional but refined.
