Description
KEF Ci200ER Overview
The KEF Ci Series Architectural Speakers are designed to meet the highest standards for performance and value. These compact speakers are certified to THX Ultra2 and Select2 standards, and offer acoustic performance equal to that of a hi-fi audio system. They are also compatible with multi-channel surround sound systems.

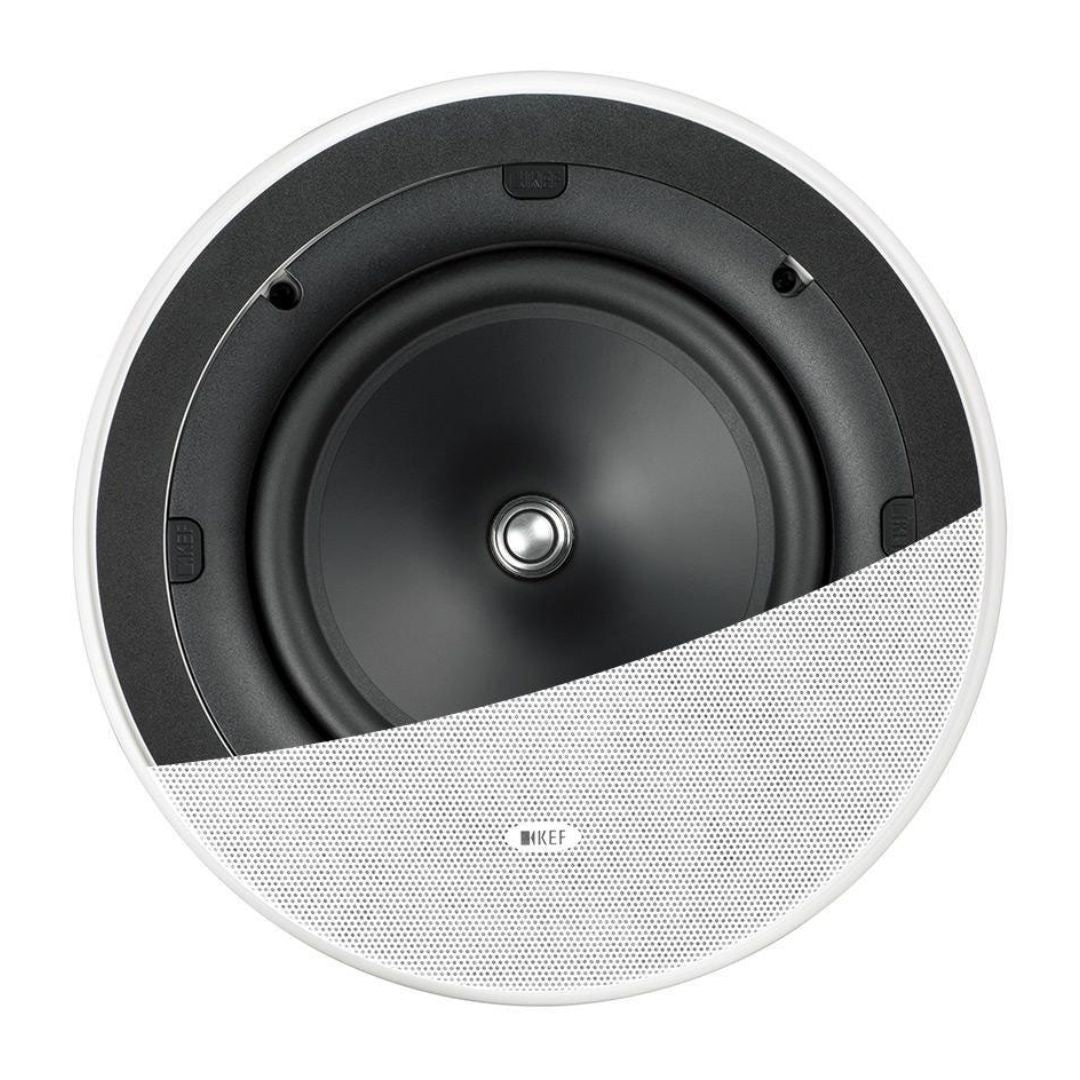

The KEF Ci200ER In Ceiling Speaker has the same round cut-out diameter as other in-ceiling speakers from KEF. It is also flush-mount, making it ideal for in-ceiling installations. Its features include the KEF Uni-Q technology, a 16mm aluminum tweeter, and a 200mm woofer.
KEF Ci200ER Features
The KEF Ci200ER In Ceiling Speaker features a unique coating process for its grilles. This coating also protects the speaker from moisture and UV rays. This makes it suitable for use in kitchens and bathrooms. The speaker has a unique IPX4 rating and can be used in wet environments.
The KEF Uni-Q driver array features a 0.6-inch aluminum dome tweeter, which works to eliminate the narrow sweet-spot. Another feature is the KEF Ultra-thin bezel technology, which provides the thinnest rim around the speaker assembly. This ensures a discrete aesthetic.
KEF Ci200ER Specifications
| Nomimal Impedance | 8 Ohms |
| Sensitivity | 90dB (2.83V/ 1m) |
| Frequency Response | 45Hz - 20kHz (±6dB) open-backed |
| Crossover Frequencies | 2.8kHz |
| Drive Units |
LF: 200mm (8in.) HF: 16mm (0.6in.) |
| Recommended Amplifier Power | 10-125W |
| Product External Dimensions |
Diameter : 289.6mm (11.4in.) Depth : 103.3mm (4.07in.) |
| Cut-Out Dimensions | Diameter : 240mm (9.45in.) |
| Mounting Thickness |
Ceiling Thickness (Maximum): 37mm (1.46 in.) Ceiling Thickness (Minimum): 6mm (0.24 in.) |
| Mounting Depth From Surface | 97.2mm (3.83in.) |
| Optional Rough In Frame | RIF200R |
| Optional Rear Enclosure | RNC200R |
| Net Weight | 1.6kg (3.6lbs) |
| Unit Measurement | Piece |
