Description

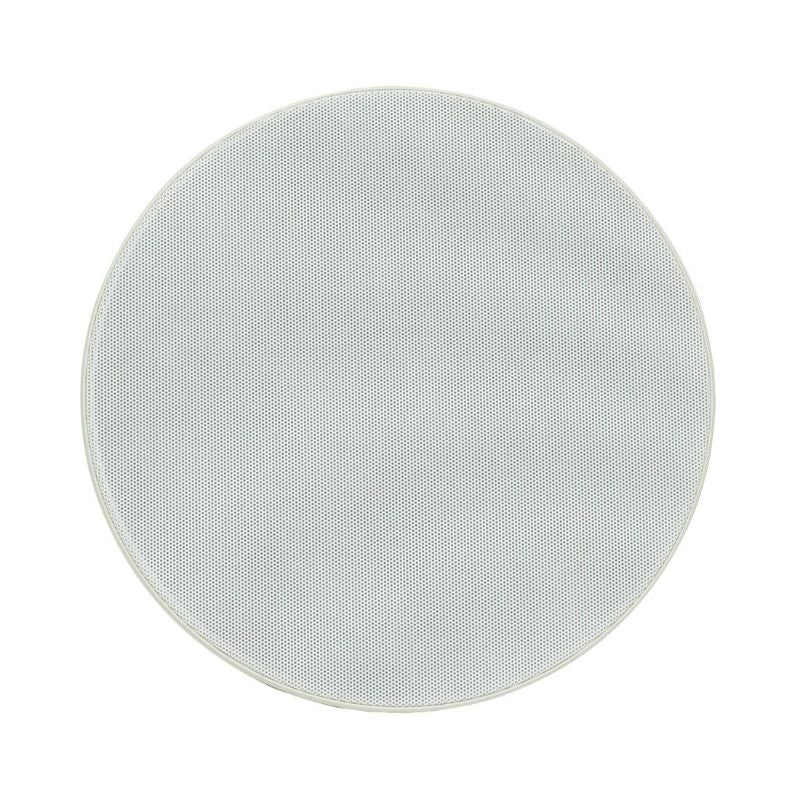

Monitor Audio Platinum PLIC II Features
The Platinum PLIC II is a design and installation friendly three way in-ceiling speaker that offers unsurpassed levels of performance, delivering sublime audio accuracy. The Platinum PLIC II ain’t your average audiophile quality speaker, which is why it should be your go to choice for your next home cinema or integrated system upgrade.
The Monitor PLIC II’s most notable features include an 8” long throw bass driver with Rigid Diaphragm Technology (RDT II), dual two inch C-CAM midrange drivers, and a Micro Pleated Diaphragm (MPD) air motion high frequency ribbon transducer. Designed with the installer in mind, this slick looking speaker is a snap to fit using Monitor’s patented Tri-Grip fixing system. The aforementioned tri-grip is a 3 position dog leg style fix that provides greater contact surface area than your standard two-part screws.
The PLIC II is not only the smallest and lightest in its class but also boasts the most impressive sound performance. The best part is it has been designed for use in a wide variety of installations and environments, making it a true standout of the pack.
Monitor Audio Platinum PLIC II Specifications
| System Format | 3 Way – 4 Driver |
| Maximum SPL | 112 dBA |
| Recommended Amplifier Requirements | 50 – 150 W |
| Bass / Midrange Crossover Frequency (Hz) | 380 Hz 4th Order (24 dB / Octave) |
| Connection | High-end ‘Push’ type terminals |
| Overall Depth – Grille On/Off |
191.5 mm (71/2") 188 mm (73/8") |
| Optional Square Grille - Outer Dimensions | 309 x 309 mm (123/16") |
| Weight (each) | 5.22 kg (11 lb 8 oz) |
| Sold As | Single Unit |
| Frequency Response (-6 dB) | 45 Hz – 60 kHz |
| Nominal Impedance | 4 ohms (3.1 ohms minimum @ 1.1 KHz) |
| Recommended Enclosure | PLIC-BOX II or a bespoke sealed enclosure of 24 litres |
| Drive Unit Complement |
1 x 8" long-throw RDT II bass driver 2 x 2" C-CAM mid-range drivers 1 x MPD high frequency transducer |
| Fixing Type | 3 position Tri-Grip dog fixings |
| Construction Material |
Main chassis - Mineral Filled ABS (RoHS2 compliant) Baffle – Die cast Aluminium |
| Cut-Out Hole Diameter | 273 mm (103/4") |
| Pre-Construction Bracket | CB10 Pre-Construction Bracket (Light Brown) |
| Sensitivity (1W@1M) | 90 dB |
| Power Handling (RMS) |
150 W |
| Mid / H.F Crossover Frequency | 5.3 KHz 3rd order (18 dB / Octave) |
| Adjustment Controls |
HF level switch (+1 dB / 0 dB / -1 dB) MF level switch (+1 dB / 0 dB / -1 dB) |
| Overall Diameter - Grille On/Off |
309 mm (123/16") 296.25 mm (1111/16") |
| Grille Type |
Low profile trimless grille with magnetic fixings – Paintable (square grille available as a cost option) |
| Mounting Depth | 185 mm (75/16") |
| Back Box |
