Description

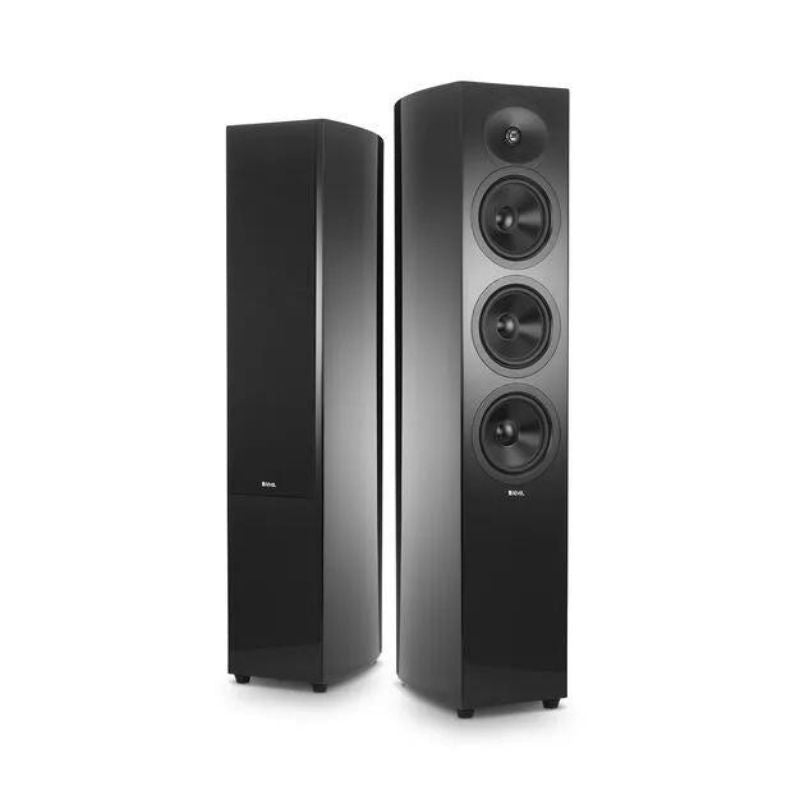

Revel F35 Overview
The Concerta2 F35 floorstanding loudspeaker was designed to deliver outstanding accuracy over a remarkably wide frequency range. The 2 1/2-way triple 5.25” floorstanding loudspeaker has the ability to provide performance worthy of the most demanding entertainment systems.
The front of the F35 has a sleek, curved cabinet that's painted gloss black or white. This gives the speakers a premium look and a slick appearance, but the simple-looking drive units are let down slightly by their lack of grilles.
The F35's cabinet is a boat-backed design with slotted and curved walls to add stiffness and an inner fiber-board layer to increase its damping. This means that the drivers are able to move freely without being buffeted by the movement of the cabinet, a feature which is especially useful with the F35's bass/mid-range drivers, which are located in two-and-a-half-way topology.
The F35's cabinet has been built using non-parallel 19mm thick MDF walls and figure-eight bracing. This adds to the structural integrity and makes it a very well-behaved cabinet in general, with the added benefit of being relatively lightweight, too.
Revel F35 Features
The F35 is a true full-range 2 1/2-way 5.25” floorstanding loudspeaker that was designed to provide true high-end sound quality. It will deliver an impressive combination of a wide frequency range, uncompressed dynamic range, and low distortion across the audible spectrum.
High-frequency response is supported by 1-inch aluminum dome tweeters that were derived from Revel’s Performa3 series. Low/Mid range frequency response is supported by 5.25” Aluminum cone woofers featuring low-distortion motor structures for greater clarity and accuracy with improved sensitivity and output capability.
The patented wave guide design improves the tweeter-to-woofer blend and significantly improves off-axis response for consistent performance over a wide listening area. In doing this we sacrificed no details by making sure no fasteners were visible allowing the speaker to show enhancing smooth lines of the cabinet and magnetically attached grilles. To finish the enclosure, we selected high gloss black and white finishes to highlight the features of this beautiful speaker.
The Concerta2 Series was developed to meet a number of challenges; it had to be a distinct sonic improvement over the previous Concerta series, it had to be visually stunning with a more modern design and it had to maintain a popular price point. The Concerta2 Series was able to achieve these by employing a number of advanced technologies that include superior waveguides, optimized transducers, new crossover topologies, and novel port designs.
Revel F35 Feature 1. A 1′′ Acoustic Lens and Waveguide Tweeter
One of the key aspects of any Revel speaker design is its driver. The Concerta2 F35 is no exception; a 1′′ aluminum dome tweeter sits in the middle of an Acoustic Lens and Waveguide, designed to improve dispersion and off-axis listening. It also matches the high-frequency waveguides to the 133mm mid/bass driver below it, delivering a truly natural sound.
The Revel F35's tweeters have a mechanical resonance that is far below the operating band, which helps preserve linearity and consistency. This is achieved through a cavity behind the magnetic assembly that is vented to reduce the space that is required for the magnet and a compliant diaphragm surround to control the resonance.
In addition to being a major component of the Concerta2 F35's performance, the tweeter also plays a major role in its looks. The tweeter is surrounded by an acoustic lens and a broad waveguide to extend the frequencies and match the 133mm mid/bass driver's off-axis response, giving the F35 a very realism-friendly appearance.
Revel F35 Specifications
| Crossover Frequencies | 575Hz, 1.8kHz |
| Enclosure Type | Bass-Reflex via Rear-Firing Port |
| High-frequency Driver Components | 1" Aluminum Tweeter with Acoustic Lens Waveguide |
| Nominal Impedance | 6 Ohms |
| Input Connections | Five-way binding posts |
| Low-Frequency Extension | 55Hz, 46Hz, 35Hz (-3 dB, -6 dB, -10 dB) |
| Low-frequency Driver Components | 3 x 5.25" Aluminum Cone Woofer |
| Recommended Amplifier Power | 30-180W |
| Sensitivity | 90dB (2.83V @ 1M) |
| Dimensions | 40.25" x 8.42"x 12.2" (102cm x 21cm x 31cm)—Including Feet |
| Weight | 41 lbs |
