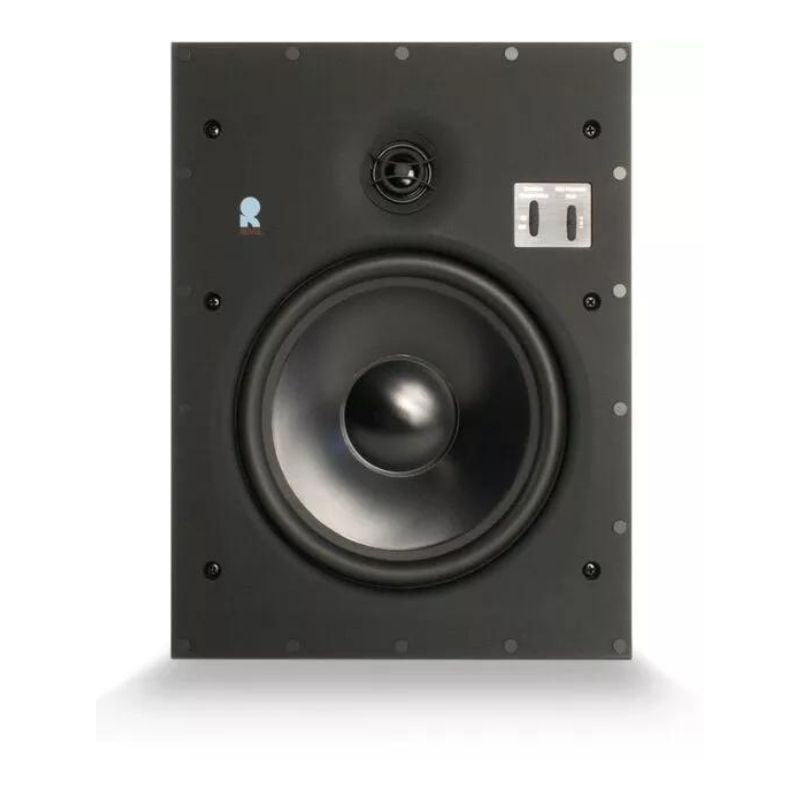

Revel W783 Overview
Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources, and unique perspective that put all Revel loudspeakers in a class by themselves.
The Revel W783 is an excellent option for anyone looking to enhance their home entertainment experience. It has an advanced design that makes it simple to install and offers a number of innovative features. The high-order crossover network, aluminum-dome tweeter, and cast-frame woofer all work together to create a powerful, accurate, and immersive experience for your music or movie watching. Plus, the bezel-free design means it can be fitted in virtually any location. Its other notable features include a high-quality boundary compensation switch that lets you control the bass energy when installed near an adjacent wall or ceiling. Its one-inch aluminum dome tweeter has a three-position output level switch that lets you cut or boost the high frequencies. It also has a frameless grille that attaches magnetically to the speaker, giving it an elegant and unobtrusive look.
Revel W783 Features
The Revel W783 is a fantastic in-wall speaker that provides a great-sounding experience for music and movies. It features a high-order crossover network and long-throw woofers that offer detailed and accurate sound. It also has a boundary compensation switch that allows you to adjust the low-frequency output when installed near a wall or corner.
A high-quality crossover network delivers smooth transitions between the woofer and the tweeter, resulting in a crisp sound. The speakers also feature a bezel-free design that enables them to blend in seamlessly with your decor.
High-quality materials and construction ensure long-lasting performance. The W783 boasts an aluminum dome tweeter and cast-frame woofer that deliver excellent sound with low distortion.
Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources, and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.
Revel W783 Specifications
| Depth | Mounting depth 3.7" (9.4 cm) |
| Weight | 7.1 lb (3.2 kg) / Shipping weight 8.6 lb (3.9 kg) |
| Features | Cutout dimensions (H x W) 11.9" x 8.9" (30.3 cm x 22.7 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 12.9" x 9.9" (32.8 cm x 25.2 cm |
| High-Frequency Driver Components | 1" aluminum dome swiveling high-output tweeter with waveguide |
| Low-Frequency Extension | High-Frequency Extension 3-position HF level contr /Low-Frequency Extension LF boundary compensation |
| Low-Frequency Driver Components | 8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer |
| Mounting | C-2 mounting mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm) |
| Recommended Amplifier Power | 10 - 150 Watts RMS |
