Description
SVS Prime Elevation Speaker Overview
The Prime Elevation Speaker is marketed as the world's most versatile speaker. It can be used as a height channel for object-based immersive audio like Dolby Atmos or DTS:X, but it can also be positioned to the side, rear, or front of your home theater screen. It also works as a surround channel, whether it's left or right, as well as a bipole or dipole surround speaker in case you don't have enough space to use full-sized speakers in your room.
Designed to be both practical and beautiful, SVS Prime Elevation features an angled front baffle that enables many placement options. You can position it as a height speaker, under your screen, or above the screen, and you can even place it on top of a TV console for aesthetic reasons.

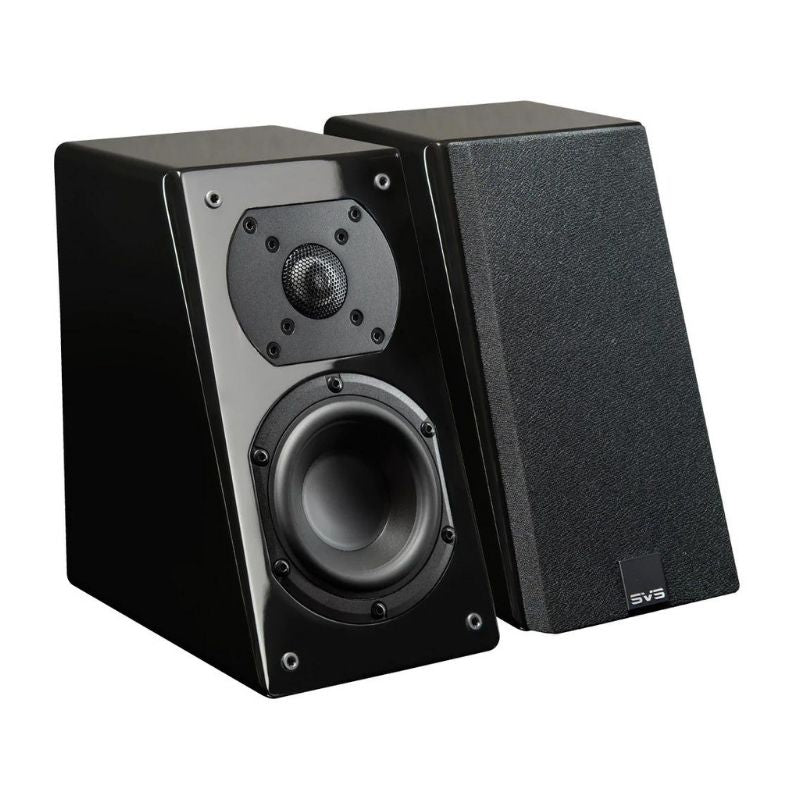

It's made from hard MDF, a solid material that's known for its durability and acoustic performance. On the front, it has a removable fabric grille with a magnetic SVS logo on the bottom. This grille protects two drivers - a 4.5" polypropylene cone woofer and a 1" aluminum dome tweeter.
On the back, you'll find a wall mounting port and 5-way binding posts. SVS has also included a clever cardboard template that will help you determine the best position for the Prime Elevation speakers.
SVS Prime Elevation Speaker Features
Another great thing about the Prime Elevation is that it comes with a two-piece, no-fuss multi-angle wall bracket kit that makes it easy to hang the speaker in any of four positions. Its patent-pending design allows it to be mounted up or down, side, or rear-firing in any configuration you need for the best possible performance.
The Prime Elevation has an impressive rated bandwidth of 55 Hz – 25 kHz (+/-3 dB). Its 4.5" polypropylene cone w/aluminum dome woofer and 1" aluminum dome tweeter deliver smooth, detailed bass, crystal clear dialogue and vocals, and an enveloping soundstage.
Compared to the higher-end bookshelf and floorstanding speakers, the Prime Elevation is a bit lower in bass response but offers a more balanced sonic experience. The midrange is smooth, and the treble is rich with detail, but it's important to note that you'll need a subwoofer if you want a deep bass response.
The Prime Elevation is available in black ash, piano white, and piano black finishes. The black ash version is more expensive, but it has an amazing sonic performance for its price point.
SVS Prime Elevation Speaker Specifications
Frequency Response / Acoustic Data:
| Rated bandwidth: | 55 Hz-25 kHz (±3 dB) |
| Nominal impedance: | 8 ohms. |
| Sensitivity: | 87 dB (2.83V @ 1 meter full-space, 300-3kHz) |
| Recommended amplifier power: | 20-150 watts. |
Speaker Specs:
| Cabinet Dimensions: | 9.25" (H) X 5.44" (W) X 7.88" (D) |
| Overall Dimensions: | 9.4" (H) X 5.44" (W) X 8.33" (D) (includes grille, binding posts and bumper feet) |
| Overall Dimensions: | 9.25" (H) X 5.44" (W) X 8.98" (D) (includes grille and SVS Multi-Angle Wall Bracket) |
| Shipped Dimensions: | 9.30" (H) X 12" (W) X 18" (D) |
| Weight Unboxed: | 7.8 pounds |
| Shipped Weight: | 20 pounds |
|
|
|
|
|
|
|
|
Driver Specs:
1” Aluminum Dome Tweeter:
|
|
4.5” Midrange Driver:
|
|
|
|
Crossover & Cabinet Specs:
Crossover:
|
|
|
Cabinet:
|
|
|
|
