Description
| Design |

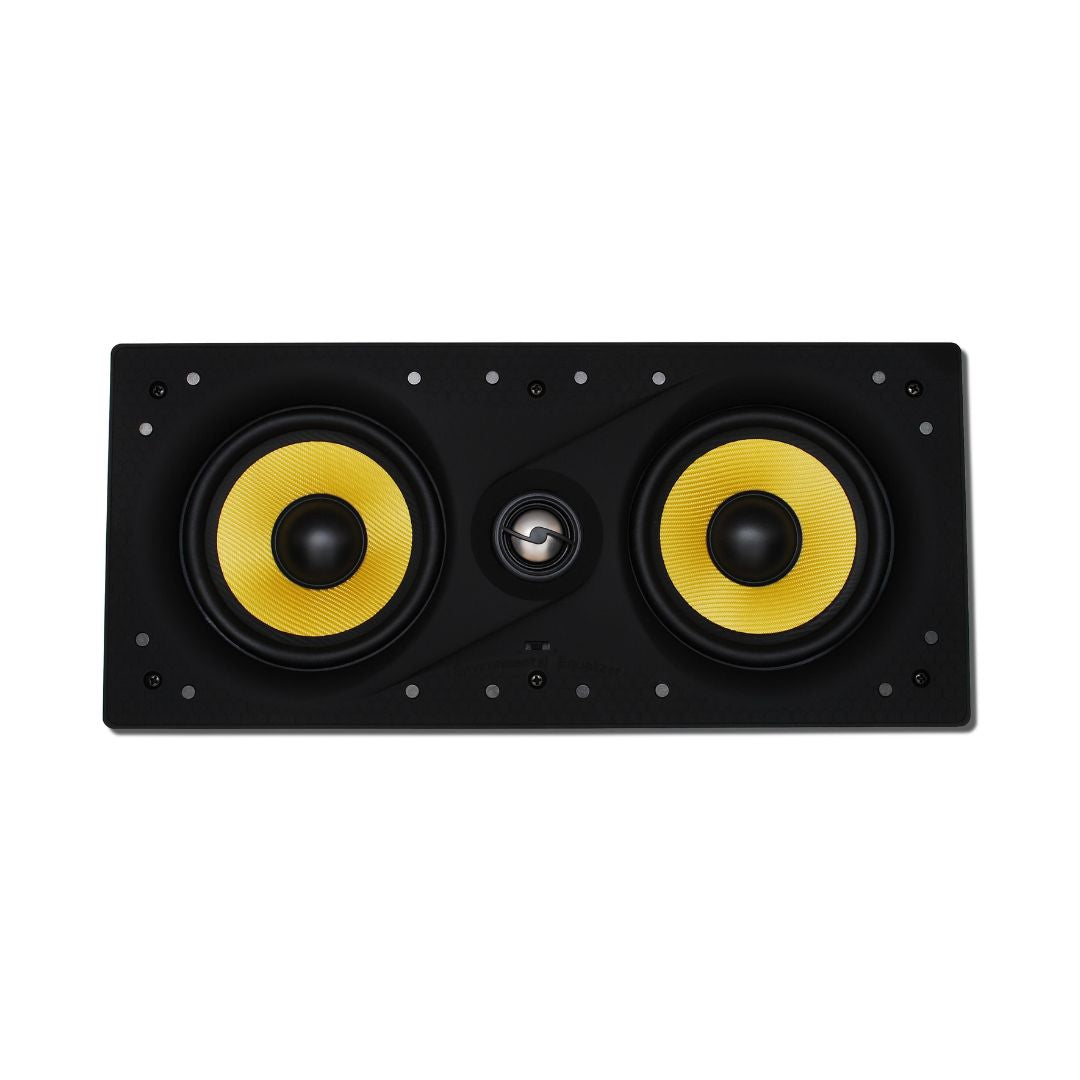

In-wall Left / Center / Right 2-way TSLB magnetically mounted grill TEI mounting bracket TIMPC enclosure TEC binding posts |
| Power handling |
100W MAX 75W RMS |
| Frequency response | 50Hz - 20kHz |
| Impedance | 8ohm |
| Sensitivity | 91dB |
| High-frequency driver |
25 mm (1”), TPTTD Swivel mount ±3dB treble switch |
| Bass-Midrange driver | 2 x 133 mm (5.25”), Kevlar® |
| Dimensions (H x W x D or Dia x D) | 38.6 x 17.5 x 8.2 cm |
| Cutout Dimensions (H x W or Dia) | 36.5 x 15.5 cm |
| Minimum Mounting Depth | 7.8 cm |
| Weight | 2.75 kg / pc. |
