Description
| Design |

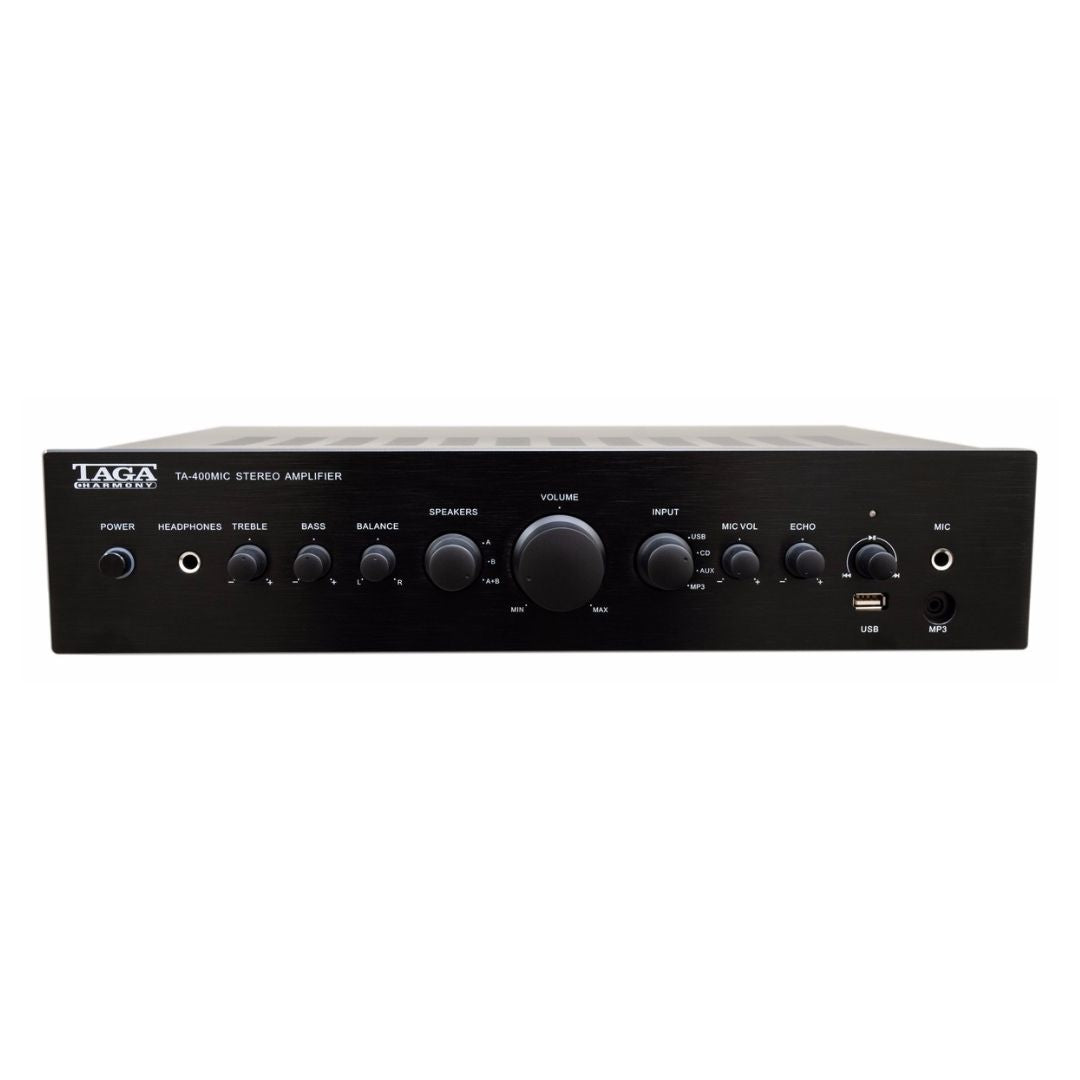

Custom Install stereo amplifier Class A/B |
| Zones / number of speakers | 2 stereo pairs (A/B) |
| Power output / impedance |
2 x 90W RMS 4ohm 2 x 60W RMS 8ohm |
| Microphone inputs |
Single Sensitivity 7mV ; THD 1% Frequency response: 200Hz –15kHz (±3dB) |
| Digital inputs | USB ( audio files: MP3 / WMA / WAV / APE) |
| Analog inputs |
CD, AUX Stereo Jack 3.5mm (front panel) |
| Analog outputs | RCA stereo REC |
| Headphone output |
Output power: 20mW (32ohm) ; THD 0.5% Frequency response: 100Hz - 15kHz (±3dB) |
| Frequency response | 30Hz - 20kHz |
| Total Harmonic Distortions | ≥2% (30Hz - 20kHz) |
| Signal/Noise ratio | ≥80dB (A-weighted) |
| Features / accessories |
Bass / Treble regulation Microphone mixing Microphone echo regulation Removable IEC power cord |
| AC power / power consumption | 220-240V 50/60Hz, 250W |
| Dimensions (H x W x D) | 9.1 x 42 x 31.7 cm |
| Weight | 6.3 kg / pc. |
