Description
Design |

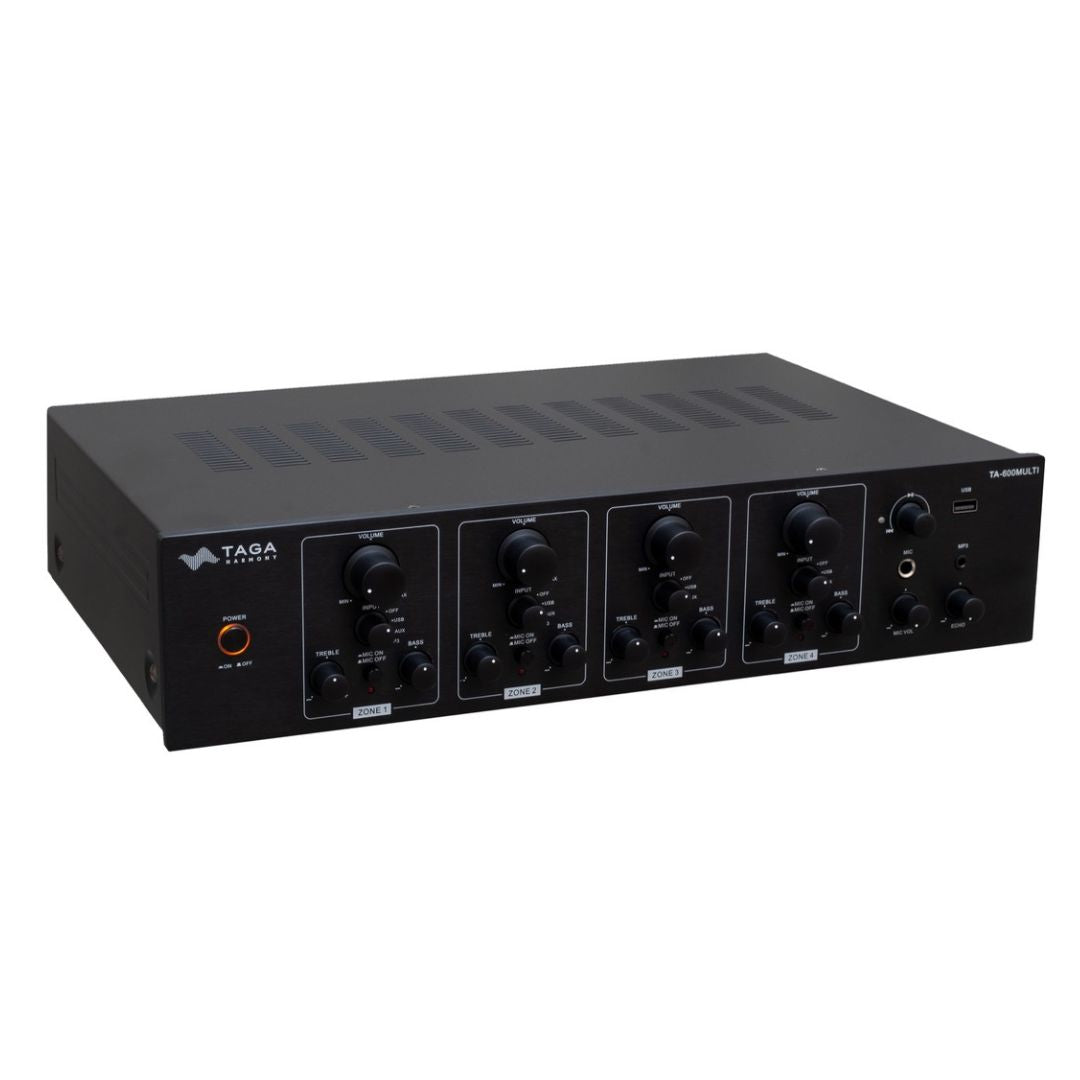

Custom Install 4-zone stereo amplifier Class A/B |
Zones / number of speakers | 4 independent stereo zones |
Power output / impedance |
All zones driven (power per zone): 2 x 18W RMS 4ohm 2 x 16W RMS 8ohm One zone driven: 2 x 30W RMS 4ohm | 2 x 20W RMS 8ohm Pairs of 4 to 16ohm speakers can be used in each zone. |
Microphone inputs |
Single Sensitivity 10mV ; THD 2% Frequency response: 50Hz –12kHz (±3dB) |
Digital inputs | USB ( audio files: MP3 / WMA / WAV / APE) |
Analog inputs |
AUX Stereo Jack 3.5mm (front panel) |
Frequency response | 20Hz - 20kHz (±3db) |
Total Harmonic Distortions | ≥1% (1kHz) |
Signal/Noise ratio | ≥75dB (A-weighted) |
Features / accessories |
Bass / Treble regulation (separate for each zone) Microphone mixing in each zone Microphone echo regulation Removable IEC power cord |
AC power / power consumption | 220 - 240V 50/60Hz, 200W |
Dimensions (H x W x D) | 10.7 x 43 x 31 cm |
Weight | 6.6 kg / pc. |
