Overview

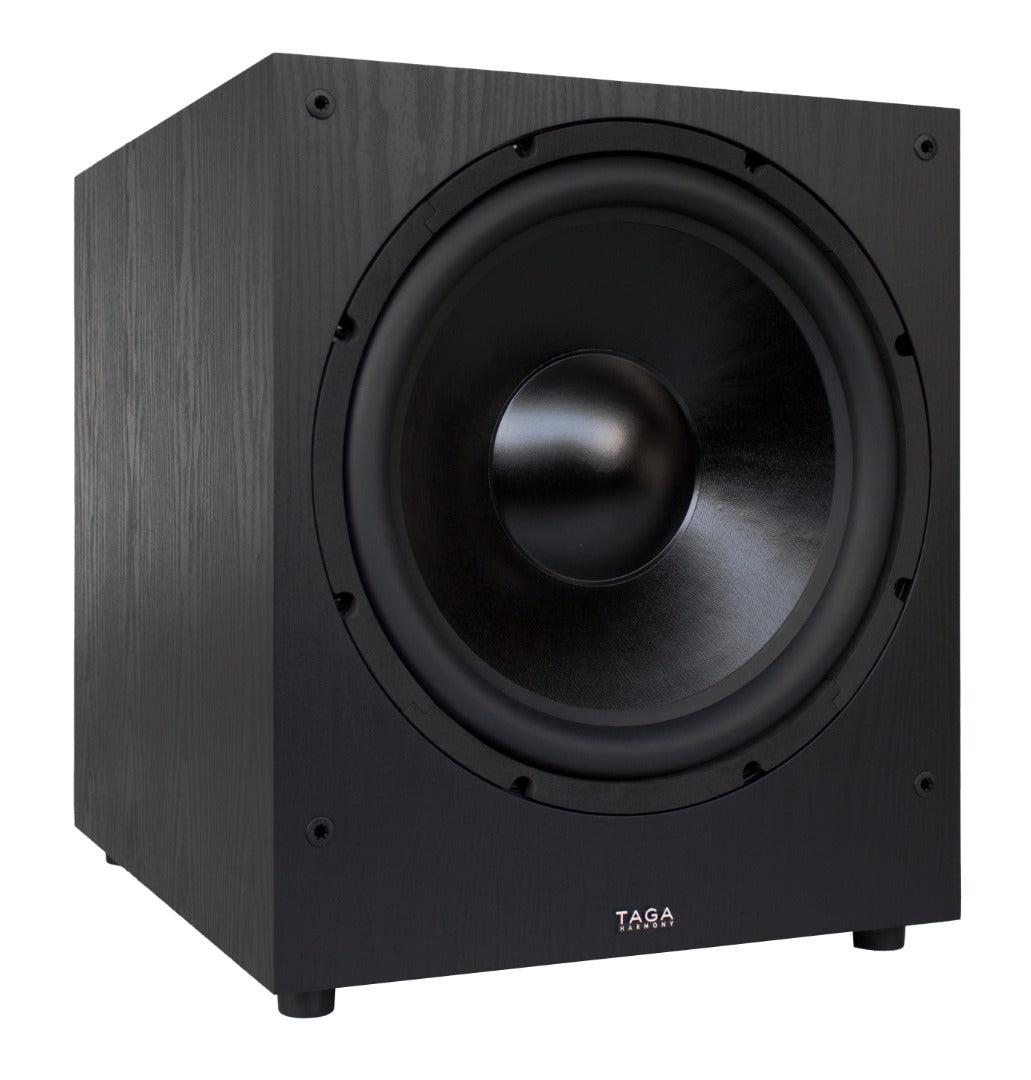

The Thunder SW-15D is a high-performance 15-inch active subwoofer built by Taga Harmony, designed to deliver deep, impactful bass with strong dynamics and minimal distortion. Its hefty woofer, robust Class D amplifier, and thoughtfully engineered bass-reflex enclosure make it ideal for both home theater and hi-fi applications. Norms are pushed here: high power, precise control, and serious low-end extension. :contentReference[oaicite:0]{index=0}

The build includes TLIE (Taga Low Interference Enclosure) design for reduced cabinet resonances, rear slotted port for efficient air flow, and sizeable internal components (voice coil, large magnet structure) to support heavy usage. If you want bass that hits hard and clean, SW-15D is built for that. :contentReference[oaicite:1]{index=1}

Key Features (with “why it matters”)

• 650W RMS / 800W Peak Class D Amplifier
  Plenty of power to deliver dynamic bass for movies, music and gaming without clipping. :contentReference[oaicite:2]{index=2}
• 15-inch (385 mm) paper woofer in a 4 Ω design
  Large driver moves more air for deeper sub-bass; 4 Ω load gives more current draw potential for greater output. :contentReference[oaicite:3]{index=3}
• Frequency response 25 Hz – 150 Hz
  Goes deep enough for rumble and effects, yet handles enough of the higher sub frequencies to blend cleanly with satellites. :contentReference[oaicite:4]{index=4}
• Variable crossover (40-120 Hz) & Phase Switch (0° / 180°)
  Lets you match the subwoofer to your main speakers and room acoustics. Phase switch further helps avoid cancellation issues. :contentReference[oaicite:5]{index=5}

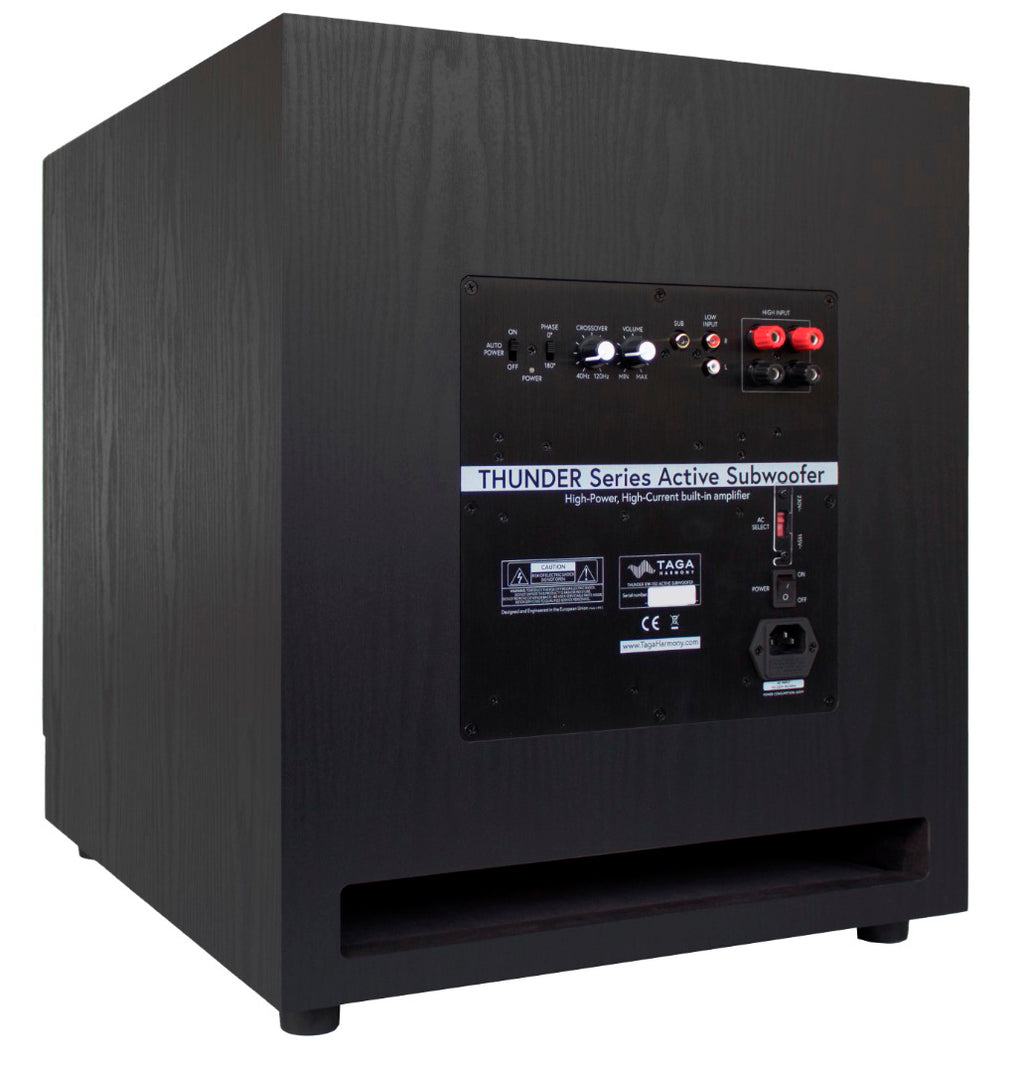

• Rear bass reflex (slotted) port
  Efficient airflow reduces port noise; placement close to the floor boosts bass without needing extreme power. :contentReference[oaicite:6]{index=6}
• Auto On/Off & standby consumption <0.5W
  Energy efficient, won't waste electricity when unused. :contentReference[oaicite:7]{index=7}
• Robust cabinet build (TLIE), heavy driver (≈7.5 kg)
  Minimises unwanted resonances, gives stability for the driver during high excursions. :contentReference[oaicite:8]{index=8}

Technical Specifications

Specification	Detail
Design	Active subwoofer, 1 driver, rear bass reflex (slotted port)
Amplifier Power (RMS / Peak)	650 W RMS / 800 W Peak
Woofer Driver	15″ (385 mm) paper cone, 4 Ω
Frequency Response	25 Hz – 150 Hz
Crossover Frequency	40 Hz – 120 Hz (variable)
Phase Switch	0° / 180°
Inputs	Line level L/R, SUB (LFE), High-level speaker inputs
Power Consumption / Standby	~450 W operating / <0.5 W standby
Dimensions (H × W × D)	50 × 41 × 49.6 cm (including grill & feet)
Weight	29.2 kg

What’s in the Box

• Thunder SW-15D Subwoofer Unit
• Power cable (Schuko/IEC C13 or local equivalent)
• Single RCA (SUB/LFE) cable
• User manual / Quick Start Guide

Recommended Use Cases & Compatibility

• Large living or dedicated home theater rooms where deep, powerful bass is desired.
• Great for bass-heavy content (action movies, electronic music, etc.).
• Pairs well with full-size speakers that need bass reinforcement below ~40-50 Hz.
• Works nicely with AV Receivers or integrated amps with LFE output; also use high-level speaker input when direct amplifier output is needed.

Important Notes / Limitations

• Large size (50 cm height) and weight (~29 kg) mean you need stable flooring and space.
• Placement is sensitive—rear port needs clearance from wall to avoid port turbulence and “boomy” bass.
• Lowest usable bass is ~25 Hz; if you want deeper rumble (< 20 Hz), you may need a supplementary subwoofer or multiple subs.
• High power output demands good cable quality and proper power supply; avoid undervaluing amplifier chain.

Common Questions (FAQ)

Q1. Can the Thunder SW-15D replace my current subwoofer?
Yes — if your current sub is underpowered or struggles with deep bass. SW-15D provides significantly greater output and control.

Q2. Will it work with smaller speakers?
Yes — it will augment the bass support for satellites or bookshelf speakers that can’t reach lower frequencies. Just adjust crossover accordingly.

Q3. How loud can it get?
Very loud — 650W RMS gives strong headroom for impactful sound without clipping. But loudness depends on room size and layout.

Q4. Does it have phase control?
Yes — switchable between 0° and 180° to help with integration and mitigate phase cancellation.

Q5. What voltage does it support?
110-120V or 220-240V depending on region. Ensure your unit is set to the correct voltage.

Warranty & Support

• Standard Taga Harmony warranty (check terms for your country / region).
• Includes user manual and service support via authorized dealers.

Trust Factors & Extras

• TLIE cabinet design for reduced interference and cleaner bass. :contentReference[oaicite:9]{index=9}
• High-current power stage for headroom and clarity. :contentReference[oaicite:10]{index=10}
• Useful controls and inputs (LFE, high-level, crossover, phase) for flexibility.
