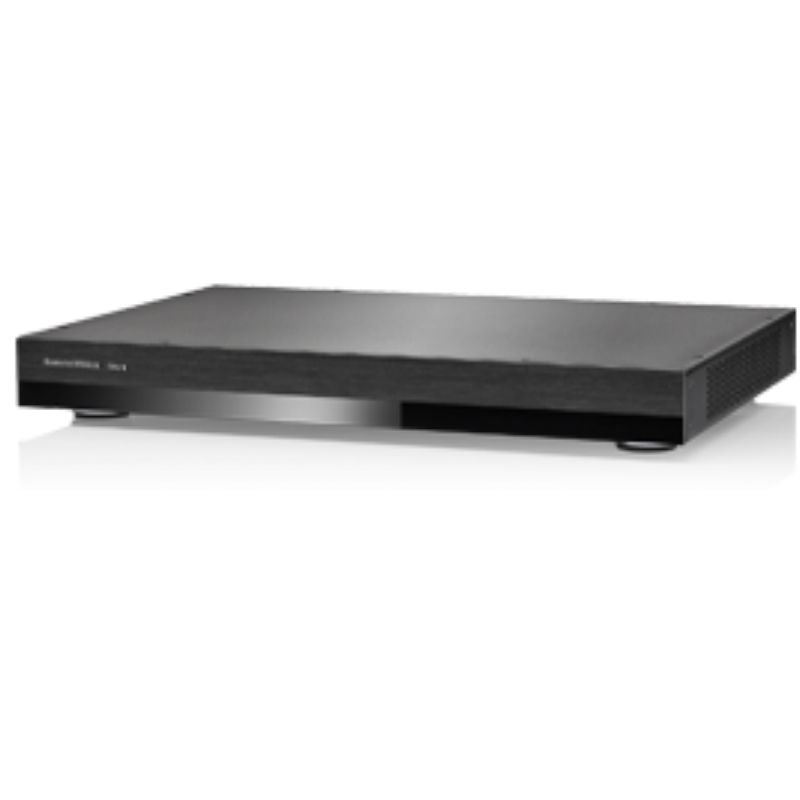

B&W CDA-16 Power Amplifier

Sale priceRs. 299,000.00

Cash on Delivery Available

Lowest Price Guarantee

  • If you get a better price than ours's then we will simply beat that by up to ₹10,000/- (Know More)
  • To get the final discounted price of a product reach out to us via WhatsApp. (Click Here)

Expert Guidance

  • With our 15+ years of experience we will never let you make a wrong decision.
  • Get obligation free consultation regarding your requirement of Hi-Fi equipment.

Professional Installation Support

  • We offer professional installation in most of the cities all over India. Check the availability of installation in your city. (Click Here).
  • In case your city is not serviceable then you will still get remote guidance by our expert.

Flexible Payment Terms

  • No need to pay full advance before receiving your product.
  • Get cash on delivery against a small token amount.


B&W CDA-16 Overview

The CDA-16 is the ideal solution for anyone looking to improve their home theatre system, with its ability to drive a mix of in-ceiling and in-wall speakers to create high-quality stereo sound, all from one compact component. It’s the perfect partner for any Bowers & Wilkins custom installation loudspeaker and will make sure you can get the best out of your system from the outset.

It’s also a great choice for multi-room systems because it can be configured with different power sources for each room. It can be bridged for even more power if needed and has the option of sharing a global source with all zones in your home.

B&W CDA-16 Features

The new CDA-16 is the latest in our Custom Installation product range and is designed to work with any Bowers & Wilkins custom installation speaker. It offers 16 channels and can power a mix of in-ceiling or in-wall speakers in up to eight rooms for high-quality stereo sound from one compact component.

In its standard configuration, the CDA-16 delivers 50 W into each of its 16 channels – or 100W with 4-ohm speakers in bridged mode – delivering generous control and authority to ensure you can get the best from any custom installation. In addition, the CDA-16 can be configured to bridge all 16 channels to provide 200W into 8 ohms for driving larger speakers.

Its 1U rack-mountable design is ready to fit into any Hi-Fi cabinet or rack for professional installations, while its low operating temperature Class D amplification ensures maximum power output and energy efficiency. It can be placed on a shelf with supplied feet, or used in a rack using the included rack ears for easy configuration and installation.

Connecting sources is simple, with eight pairs of RCA inputs offering the choice of connecting a single set of inputs as a ‘global’ connection which sends a single source signal across all its outputs. There are three power mode options for control – on, automatic detection, and 12v trigger, while robust and reliable protection features prevent damage due to overloads, short circuits, or overheating.

This 1U rack-mountable design is perfect for professional installation and is easily configured using its built-in web interface. It can be connected to the internet through WiFi or a network switch and can use all available audio streaming services via USB, Bluetooth, or the latest HDMI technology.

The CDA-16 also features two low-noise fans and optimized airflow to maintain thermal stability. It can be controlled from any room in your home or office using the included remote control.

Featuring a stylish design that’s suited to modern living, the CDA-16 is the perfect addition to any home entertainment system. At just 44.5 mm tall, it fits perfectly into both Hi-Fi cabinets and racks for professional installations and is easy to install and configure.

B&W CDA-16 Specifications

Audio Specifications

  • Load impedance range: >3Ω per channel (>6Ω in bridge mode)
  • Output Power perchannel, non-clipped: >50W into 8Ω
    >100W into 4Ω
  • Output Power bridge mode,non-clipped: >200W into 8Ω
  • Output Power total,all channels: >400W short term
    >200W continuous average
  • DC offset voltage: <50mV
  • Frequency Response (-3dB): <10Hz to >50kHz, any load impedance
  • Frequency response accuracy 20Hz-20kHz: ±0.5dB
  • Signal to Noise ratio (Ref. 50W/8Ω): >100dB A-Weighted
  • THD+N (1kHz, 12.5W, 4Ω): typically 0.05%
  • Voltage Gain: 34.9dB to - infinity, adjustable
  • Input impedance: 15KΩ
  • Maximum input voltage: 6.8V peak (4.8V rms sine wave)
  • Signal sense threshold: 2.5mV (independent of Gain setting)
  • Wake-up time: <0.2s (If other zones active): <2s (From all zones inactive)
  • Turn-off time: 15 minutes from last signal detected
  • 12V trigger input threshold: typically 3V (recommended input is 5-15V)
Controls & Indicators
  • Front panel:
    1 x Power LED (unit active – White, Fault – Red)
    8 x Zone status LEDs (Signal present – White, Fault – Red)
  • Rear panel:
    8 x 2-position DIP switches (link to global input)
    1 x 3-position switch (power mode: on, auto detect, 12V trigger)
    8 x input gain control with Clip indicator LEDs
Drive units
  • Input: 8 x RCA (pair) Phono socket, line in (global in shared with Zone 8)
  • Output:
    1 x RCA (pair) Phono socket (global out)
    8 x 5.08mm Pitch 4-way Phoenix Combicon style
  • 12V trigger control:
    1 x 3.5 mm jack - 12V trigger IN
    1 x 3.5 mm jack - 12V trigger OUT (Maximum 100mA pass-through)


  • Power consumption:
    <0.5W All zones inactive
    <45W All zones idling
    300W maximum average
    1,000W peak
  • AC supply: 100-240V 50/60Hz
  • AC inlet: IEC C14, switched

Thermal dissipation
  • 1.7 BTU/hr (standby),
  • 150 BTU/hr (Idle),
  • 400 BTU/hr (max)


  • Height: 44.5 mm (1.8in) 1U [55.5 mm (2.2in) plus feet]
  • Width: 437 mm (17.2in)
  • Depth: 310 mm (12.2in)

Net Weight
  • 4.5kg (9.9lb)

  • Black
