Description

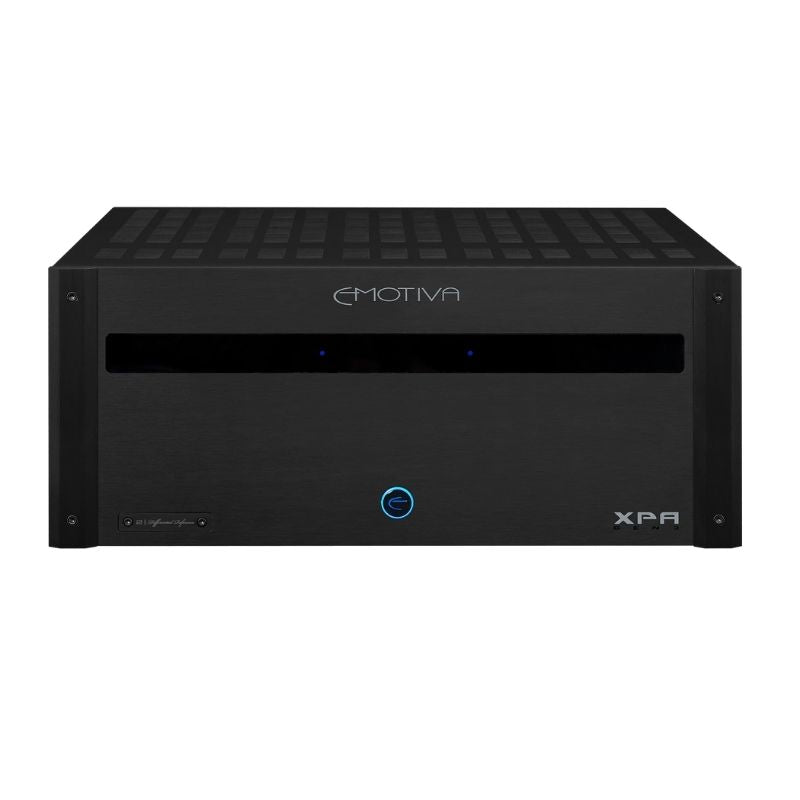

Emotiva XPA-DR2 Overview
The XPA-DR2 is a fully modular stereo amp with a heavy steel 4RU chassis, with a milled aluminum faceplate and a rear panel that houses up to three separate 'Differential Reference Amplifier Modules'. Each 'Differential Reference Amplifier' is a single, matched pair of fully discrete Class A/B output modules, each featuring Emotiva's renowned 'Soft-Switch' class H(tm) optimized power supply topology.
XPA-DR2 is the ideal choice for any stereo system that demands high power, and it's the perfect complement to Emotiva's world-class preamplifier.
Emotiva XPA-DR2 Features
Emotiva XPA-DR2 is an audiophile power amplifier that combines the exceptional accuracy and finesse of a truly balanced differential design with the power you need to deliver musical crescendos and movie special effects with stunning realism and impact. Whether you listen to a high-resolution digital source or an old-school analog recording, the XPA-DR2 delivers the combination of detail and power that only a fully differential amplifier can provide.
The standard IEC power inlet fits all standard IEC power cables and most custom audiophile power cables, and the amp can be connected to a wide range of sources via its RCA and balanced inputs. World-compliant AC line voltage operation enables the XPA-DR2 to operate on any line voltage between 100 VAC and 250 VAC 50/60Hz, making it the perfect amplifier for worldwide use.
Emotiva XPA-DR2 Specifications
Input And Output Connections:
| Input Connections: | Unbalanced (RCA); balanced (XLR); one each, per channel, user selectable. |
| Speaker Output Connections: | Audiophile grade, gold plated, 5-way binding posts |
Trigger:
| Trigger Input: | 5 – 12 V (AC or DC); <10 mA input current required. |
| Trigger Output: | 12 VDC; can drive any load up to 120 mA. |
Power Requirements
|
Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected). |
Front Panel Controls and Indicators
| Standby: | Push button (halo ring changes color to indicate Standby or On). |
| Status LEDs: | one per channel; blue. Status LEDs change to red to indicate a fault condition. |
Mechanical
| Dimensions: | 17” wide x 8” high x 19” deep (unboxed; including feet). 17” wide x 7” high x 19” deep (unboxed; without feet). 24-1/2” wide x 12” high x 24-3/4” deep (boxed). |
| Weight: |
42.5 lbs (unboxed). 47.5 lbs (boxed). |
