Description
Definitive Technology DI 5.5R Overview

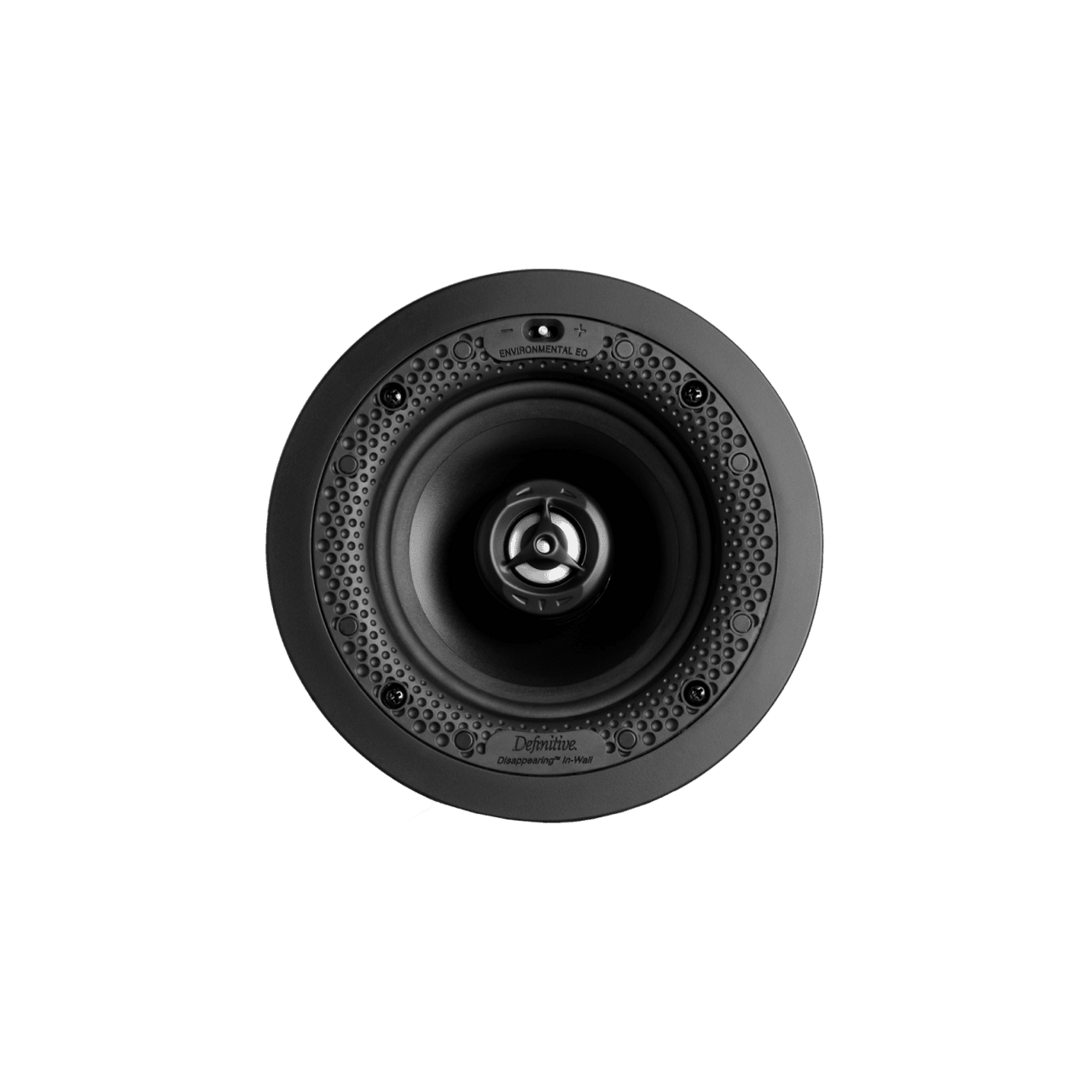

The Definitive Technology DI 5.5R In Wall / In-Ceiling Speaker delivers superior sound from an in-wall installation. The compact design with hidden flange and micro-perf grilles allows for easy installation. Its advanced technologies, including Balanced Dual Surround System (BDSS) and Pure Aluminum dome tweeters, produce clear, lifelike sound and deliver broad, even dispersion.
Definitive Technology DI 5.5R Features
Its advanced drivers and crossover network give it superior midrange/bass detail and dynamics. Moreover, the DI 5.5R features a Poly Stone basket for an efficient launching pad. In addition, the DI 5.5R utilizes a sophisticated crossover network with custom high-precision components.
The DI 5.5R is a round 5.5" in-wall / in-ceiling speaker, which has a low profile and concealed flange design. The speaker produces a full-range audio experience, with a Private able tweeter and environmental EQ. The DI Series Loudspeakers boast sensational sound quality and a sparkling treble.
The DI Series offers a variety of installation options, including Pre-Construction Rough-in Brackets and drywall screws. These speakers blend seamlessly with any setting, making them easy to install and hide away. The DI Series also offers in-wall / ceiling speakers with bipolar surround capabilities. Whether you're installing these speakers in a home theater or a concert hall, the DI Series is ready to rock.
Definitive Technology DI 5.5R Specification
| Qty Included | 1 |
| Availability | US |
| Driver Complement | • (1) 1" (2.54 cm) d (Round) Pivoting Dome Tweeter - Tweeter • (1) 5.25" (13.34 cm) d (Round) BDSS Bass/Mid - Mid/Woofer |
| Depth | 3.63" (9.22 cm) |
| Weight | 3.7 lbs (1.68 kg) |
| Grille Dimensions | 7.38" (18.75 cm) diameter |
| Audio Inputs | |
| Speaker Inputs | (1) Pair of Heavy Duty, Spring Loaded - na |
| Total Frequency Response | 28 Hz → 30,000 Hz |
| Nominal Impedance | 8 ohms |
| Max Sensitivity (1 watt @ 1 meter) | 89 dB |
| Peak Power Handling | 175 watts |
| A/V Receiver Crossover Settings | Small (80 Hz) |
| Shape | Round |
| Dimensions | 6.31" (16.03 cm) diameter |
| Clearance Required for Mounting Dogs (add to each side of cutout) | 1" (2.54 cm) |
| Shape | Round |
| Dimensions | 6.31" (16.03 cm) diameter |
| Clearance Required for Mounting Dogs (add to each side of cutout) | 1" (2.54 cm) |
