Description
Overview

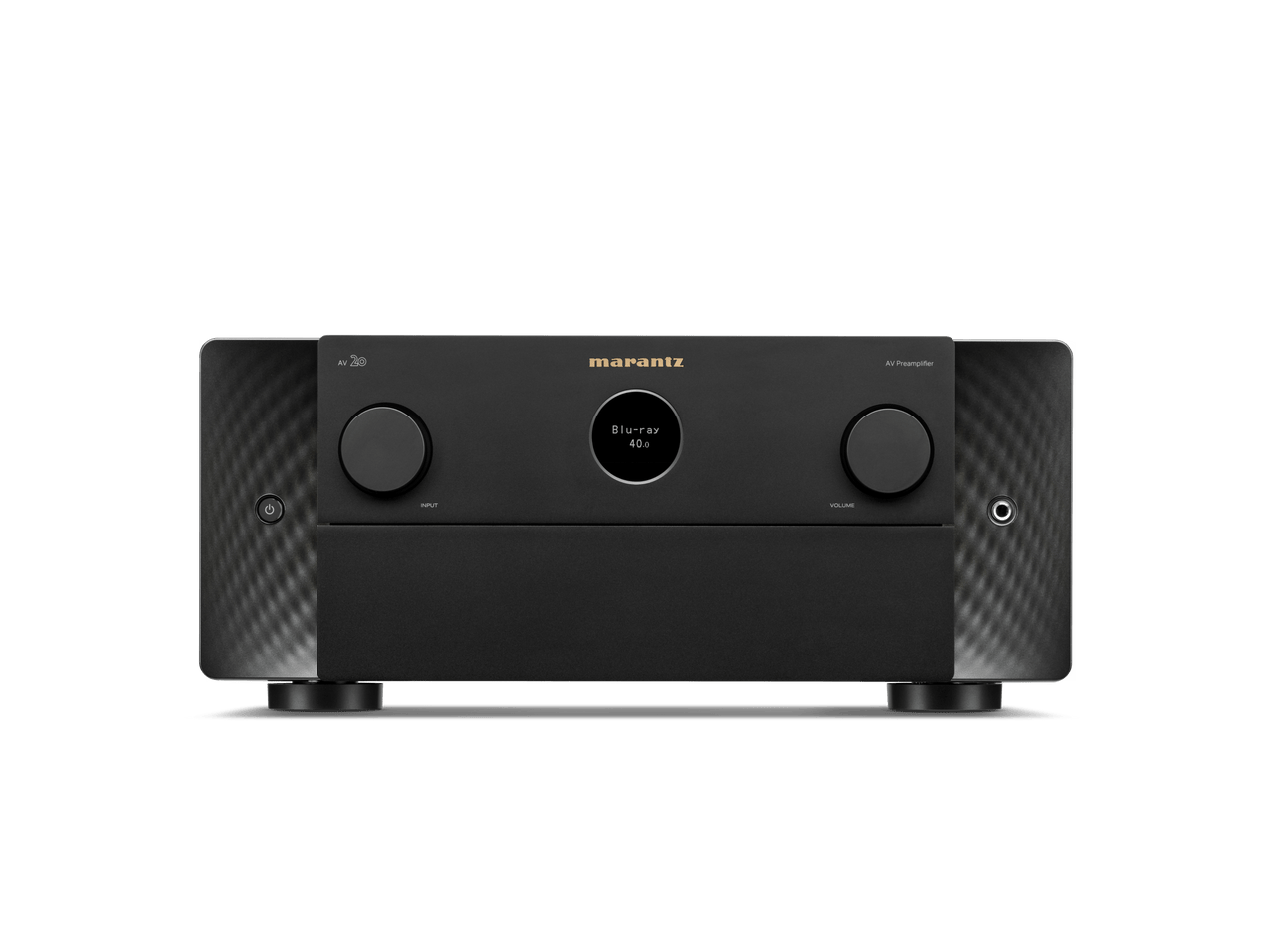

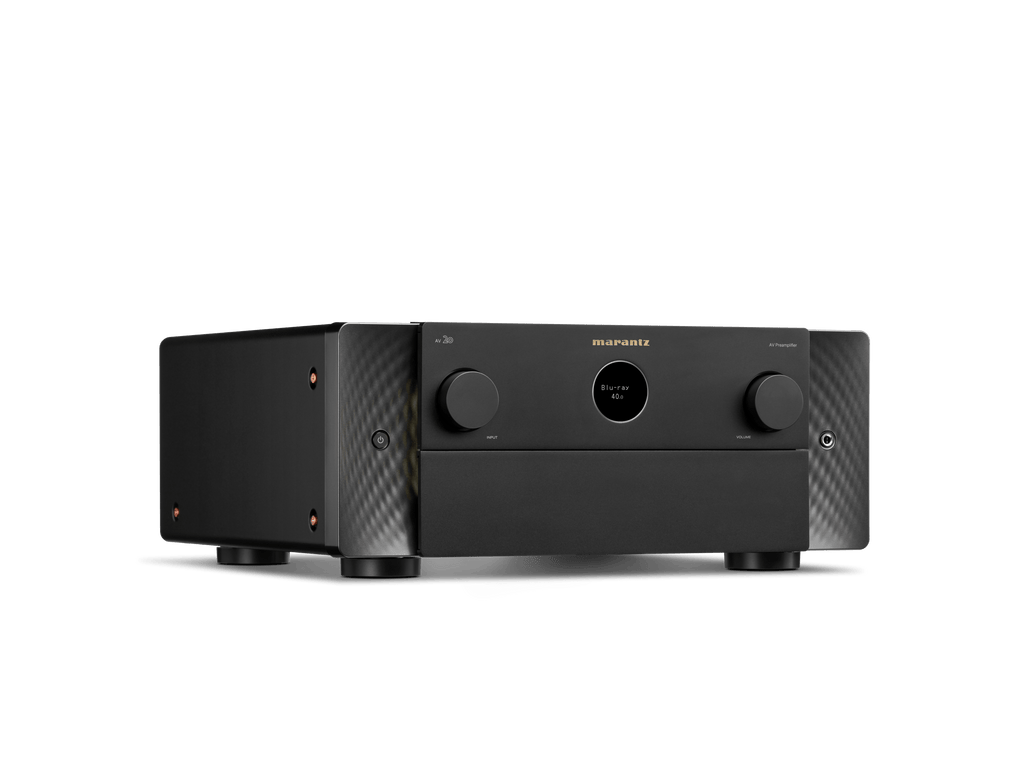

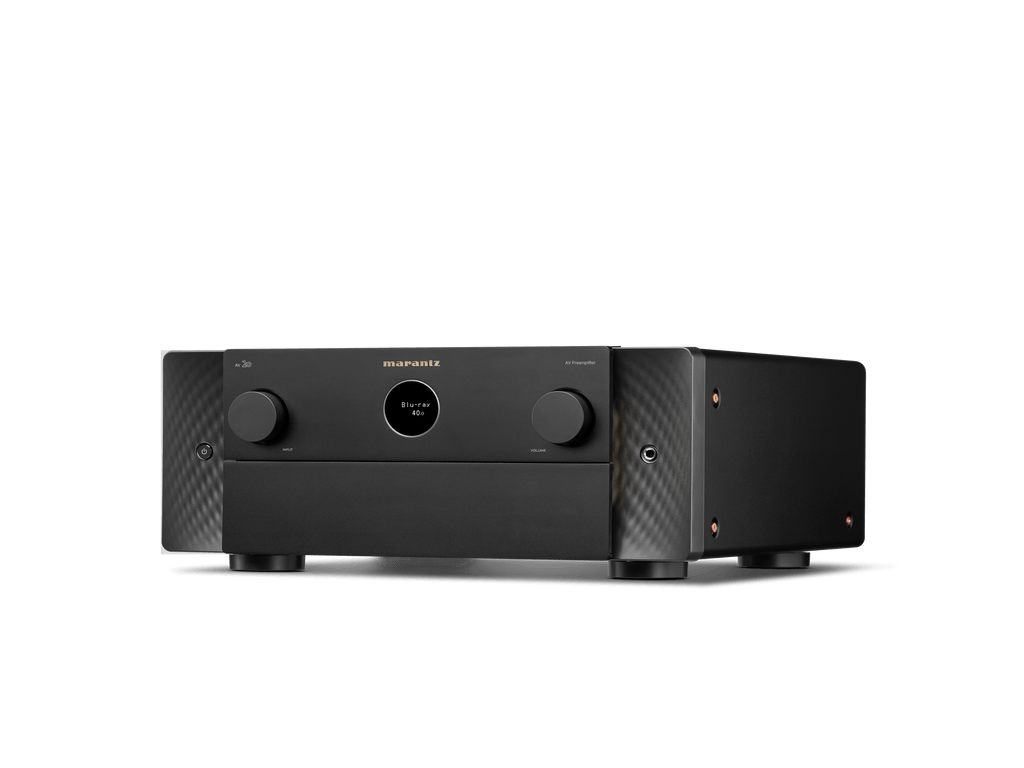

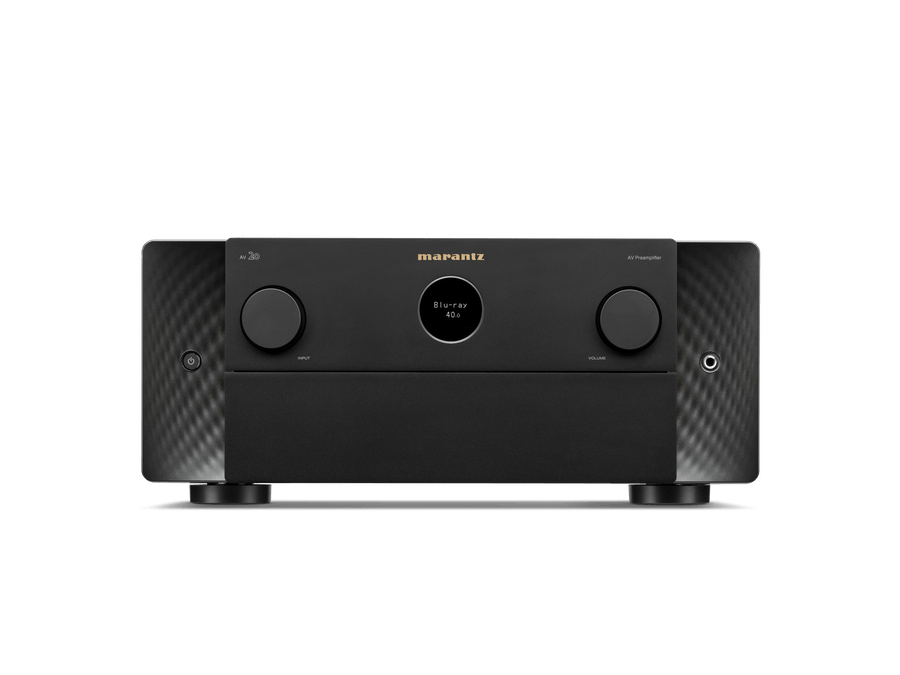

The Marantz AV 20 is a reference-level 13.4-channel balanced AV preamplifier built for the most demanding custom home theater installations. Featuring Marantz's proprietary HDAM discrete circuitry, seven 8K UHD-compatible HDMI inputs, and support for Dolby Atmos, DTS:X Pro, and Auro-3D, the AV 20 delivers uncompromising audio and video performance. With four independent subwoofer outputs, balanced XLR pre-outs, and HEOS built-in, it forms the ideal foundation for a flagship multi-channel system when paired with an external power amplifier such as the Marantz AMP 20.
Key Features (with "why it matters")
-
13.4-channel processing with 15.4 XLR/RCA pre-outs
Handles advanced speaker layouts up to 9.4.6 or 7.4.6 Dolby Atmos/DTS:X Pro configurations. -
Marantz HDAM-SA3 discrete circuitry
Delivers the signature warm, detailed Marantz sound with current feedback topology for high-fidelity amplification. -
7 HDMI inputs / 3 outputs, all 8K-capable
Full 8K/60Hz and 4K/120Hz pass-through with HDR10+, Dolby Vision, VRR, and ALLM for next-gen displays and gaming. -
Audyssey MultEQ XT32 with Dirac Live upgradability
Precision room correction out of the box, with a clear upgrade path for even finer acoustic tuning. -
4 independent subwoofer outputs (RCA & XLR)
Enables smoother, more even bass distribution across large or acoustically challenging rooms. -
HEOS Built-in, AirPlay 2, Roon Ready
Extensive streaming support including Spotify, Tidal, Amazon Music, and Qobuz, plus whole-home multi-room audio. -

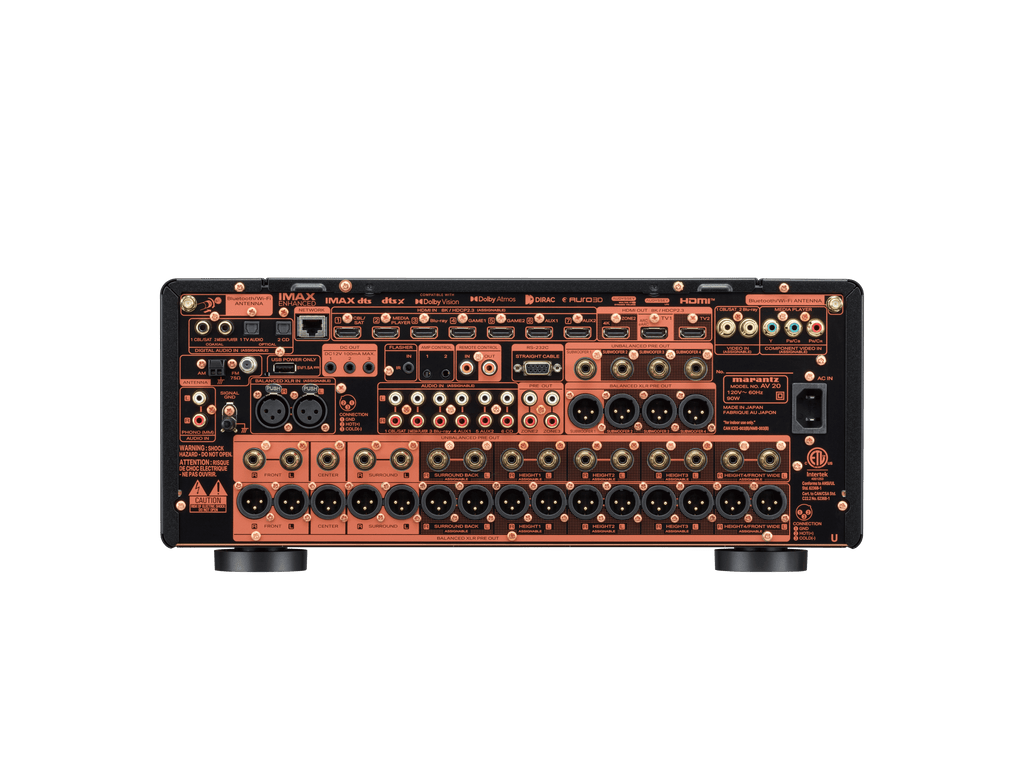

Balanced XLR inputs and pre-outs
Minimizes noise and interference for the cleanest possible signal path in reference-grade systems.
Technical Specifications
| Specification | Detail |
|---|---|
| Max Processing Channels | 13.4 |
| Audio Decoders | Dolby Atmos, Dolby TrueHD, DTS:X, DTS:X Pro, Auro-3D, IMAX Enhanced, 360 Reality Audio, MPEG-H |
| Room Correction | Audyssey MultEQ XT32 (Dirac Live upgrade available) |
| HDMI Inputs / Outputs | 7 in / 3 out (all 8K, HDCP 2.3, eARC) |
| Video Support | 8K/60Hz, 4K/120Hz, HDR10+, Dolby Vision, HLG, VRR, ALLM, QFT |
| Analog Inputs | 6 (incl. 1 × XLR), Phono (MM) |
| Digital Inputs | Optical ×2, Coaxial ×2 |
| Pre-Amp Outputs | 15.4 channels via RCA and XLR |
| Subwoofer Outputs | 4 independent (RCA, XLR) |
| Streaming | HEOS, AirPlay 2, Roon Ready, Spotify, Tidal, Amazon Music, Qobuz, Deezer |
| Network / Wi-Fi / Bluetooth | Ethernet, dual-band Wi-Fi, Bluetooth |
| Multi-Room | HEOS multi-room, 3 zones |
| Dimensions (W × D × H) | 442 × 437 × 190 mm (w/o antenna) |
| Weight | ≈ 15 kg |
| Finish | Black |
What's in the Box
- Marantz AV 20 AV Preamplifier
- System remote control (RC051SR) with batteries
- Audyssey calibration microphone and cardboard stand
- 2 × external detachable AM/FM antennas
- Wire labels, AC cord, quick start guide
Recommended Use Cases & Compatibility
- Flagship pre/pro choice for custom home theaters requiring balanced connectivity and maximum flexibility.
- Pairs perfectly with the Marantz AMP 20 or AMP 10 for a complete separates-based reference system.
- Ideal for 7.4.6 or 9.4.2 Dolby Atmos / DTS:X Pro speaker layouts with multiple subwoofers.
Important Notes / Limitations
- This is a preamplifier/processor only — requires an external power amplifier to drive speakers.
- Large connectivity suite is best suited to custom installations with a dedicated AV rack.
Common Questions (FAQ)
Q: Does the AV 20 include power amplification?
No, it is a dedicated preamplifier/processor and needs external amplification such as the Marantz AMP 20.
Q: Can it be upgraded to Dirac Live?
Yes, it ships with Audyssey MultEQ XT32 and supports a Dirac Live software upgrade.
Q: How many subwoofers can I run?
Up to 4 independent subwoofer outputs are available via RCA and XLR.
Warranty & Support
- 1-year warranty in India
- Authorized Marantz service centers available
- Ensure purchase from authorized AV Kart / Marantz partners to retain warranty validity
Trust Factors & Extras
- Part of Marantz's reference-level AV Separates lineup, alongside the AV 10 and AMP 20.
- Sound Master tuned for the signature Marantz musical character.
- Full 8K-ready connectivity for long-term future-proofing.
